In-situ characterization of metal halide perovskite formation in environmentally friendly solvents using in situ wide and small angle X-ray scattering
Alan D. F. Dunbar a, Adam Urwick a, Suleiman Bello a, Malin B. Johansson b
a Department of chemical and biological engineering, University of Sheffield, Sheffield S10 2TN, Reino Unido, United Kingdom
b Department of Chemistry, Ångström Laboratory, Uppsala University, Sweden
Materials for Sustainable Development Conference (MATSUS)
Proceedings of MATSUS Fall 2023 Conference (MATSUSFall23)
#MHPN3 - Fundamental Advances in Metal Halide Perovskites and Beyond: new materials, new mechanisms, and new challenges
Torremolinos, Spain, 2023 October 16th - 20th
Organizers: Paola Vivo, Qiong Wang and Kaifeng Wu
Oral, Malin B. Johansson, presentation 114
DOI: https://doi.org/10.29363/nanoge.matsus.2023.114
Publication date: 18th July 2023

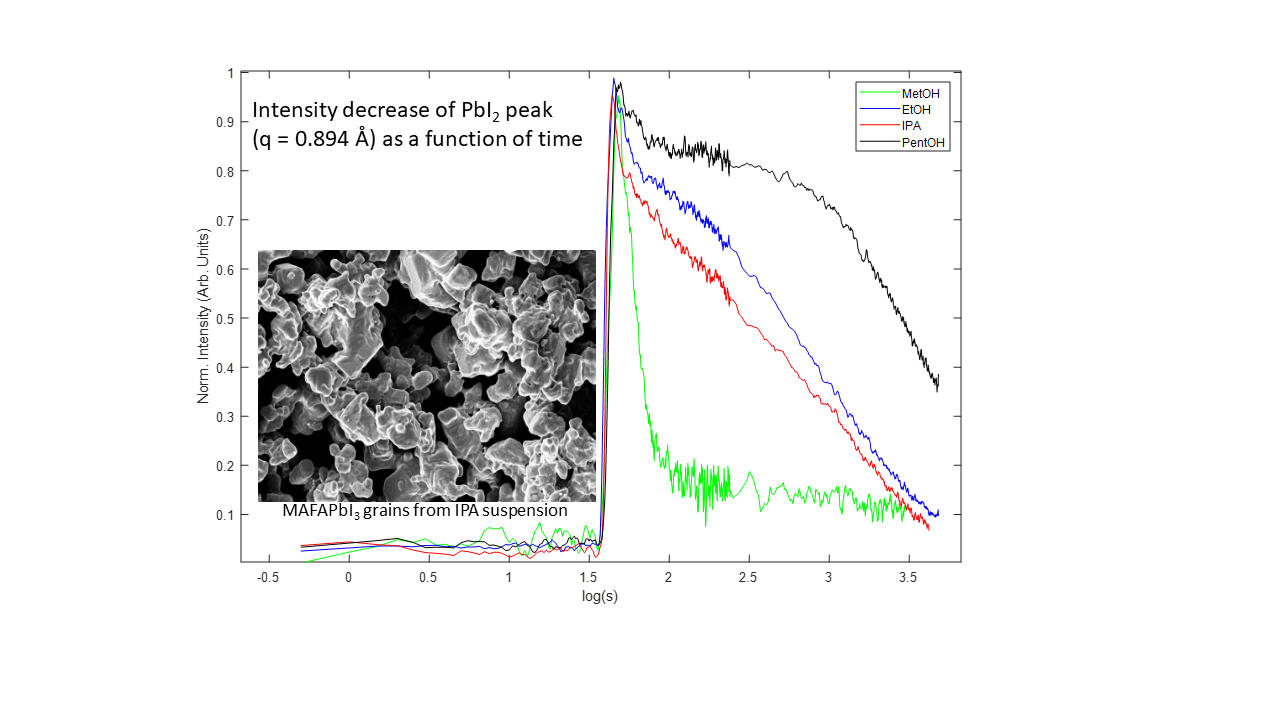

Interest in pre-crystallisation of metal halide perovskite has increased in recent years because it allows for easy production of large quantities of powder perovskite. Perovskite thin film devices subsequently made from the powder exhibit high performance [1,2]. In this study we compare methanol, ethanol, 2-propanol and pentanol as solvents for precipitation reactions forming methyl ammonium lead iodide MAPbI3 and methyl ammonium formamidinium lead iodide MA0.5FA0.5PbI3 perovskites. Using time resolved in-situ small and wide X-ray scattering (SAXS and WAXS), we were able to follow the reaction of the dissolved methylammonium iodide and formamidinium iodide when a suspension of lead iodide was added to the system. The evolution of the diffraction pattern with time was determined whereby the structural assembly from precursors to perovskite could be followed. The perovskite formation was discovered to be, not surprisingly, initially fast on the surface and during small grain formation. However, the rate of total perovskite formation of the bulk was slower and clearly dependent on the polarity of the solvents and progressed via intermediate phases. The measurements were supported with scanning electron microscopy and optical spectroscopy techniques to correlate grain formation with functionality. Our results led to a deeper understanding of the intermediate steps during the reaction. The precipitation method to produce metal halide perovskite described in this work is cost-effective and has fewer safety issues due to the low solvent toxicity. Furthermore, the stoichiometric homogeneity achieved by the pre-crystallisation process in alcohol subsequently simplifies thin film deposition and therefore improves photovoltaic device performance over large areas. This work outlines an alternative processing route for stable photovoltaics based on perovskite powder.
