A Comparison of Thermal Stabilities of Methylammonium Lead Iodide and Methylammonium Lead Bromide Perovskites Using X-Ray Photoelectron Spectroscopy.

Udit Tiwari^a, Karen Syres^a, Andrew Thomas^b, Mark Jackman^b, Alexander Generalov^c, David Lewis^b, Michael Wagstaffe^d

^aUniversity of Central Lancashire, University of Central Lancashire, Preston PR1 7QR, UK, Preston, United Kingdom

^bUniversity of Manchester, MSS Tower, Manchester, United Kingdom

^cLund University, Sweden, Kämnärsvägen 10H, Lund, 22645, Sweden

^dDESY - Deutsches Elektronen-Synchrotron, Hamburg, Notkestraße, 85, Hamburg, Germany

Proceedings of International Conference on Frontiers in Electrocatalytic Transformations (INTERECT)

València, Spain, 2021 November 22nd - 23rd

Organizers: Elena Mas Marzá and Ward van der Stam

Poster, Udit Tiwari, 007
Publication date: 10th November 2021

Metal halide perovskites are a new class of semiconductor material which show great promise for thin film solar cells. Although, they have efficiencies competitive with monocrystalline silicon, the advantages of flexibility, low cost, and easy processing, makes them superior candidates over conventional inorganic solar cells [1]. Perovskite based thin film solar cells have now reached an efficiency of 25.6% as of April 2021 [2]. Perovskite materials are distinguished by tuneable bandgap [3], ambipolar charge transport [4], long carrier lifetimes [5], and long charge diffusion lengths [6]. At present, the most studied organic-inorganic perovskites are represented by the formula CH₃NH₃PbX₃where X is a halide ion (Cl, Br, or I).

The major obstacle facing perovskite solar cells is their limited service life under operating conditions owing to the deterioration of the absorber material in contact with humidity, heat, and light [7, 8]. Understanding the degradation mechanism in perovskites is of crucial importance for device design and optimization. The degradation mechanism of perovskites has been a topic of extensive exploration [9-16]. Although various degradation pathways have been proposed, the exact route is still under debate. A few XPS studies have shown the presence of metallic lead in the perovskite films but the pathway of lead precipitation is not very well understood [17].

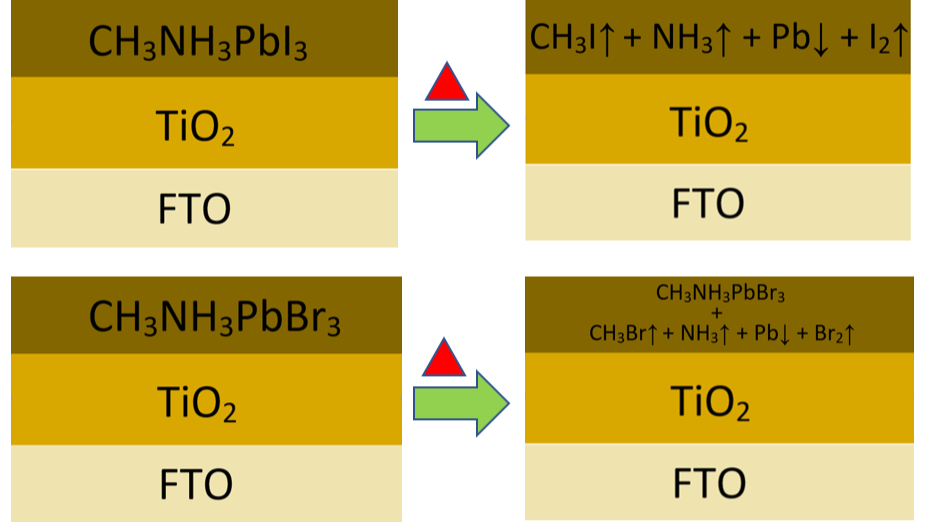

In this study, we aim to compare the thermal degradation mechanism of the two main lead halide perovskites: CH₃NH₃PbI₃(MAPbI₃) and CH₃NH₃PbBr₃ (MAPbBr₃) using X-ray photoelectron spectroscopy (XPS). The samples were heated to around 200 °C and XPS data was recorded before and after heating. We observed that the perovskite peak in the MAPbI₃C1s spectra changes to MA⁺ after heating, whereas the perovskite peak still remains after heating in the case of the MAPbBr₃ sample. This suggests that the perovskite phase in the MAPbI₃ sample fully degraded upon heating but the perovskite phase in the MAPbBr₃ sample only partially degraded. Similarly, in the N 1s spectra of the MAPbI₃ sample the perovskite peak disappeared after heating and a new peak corresponding to the binding energy of MAI was observed post heating. In contrast, the perovskite peak was seen before and after heating in MAPbBr₃sample as observed in the C1s spectra. We also observed metallic lead peaks (as has been previously reported) in both the samples before and after heating. However, the intensity of the peaks increased post heating indicating that thermal stress accelerated the precipitation of metallic lead. We observed a decrease in the concentration of iodine and nitrogen after heating and an increase in the surface lead concentration in the MAPbI₃ sample. In contrast, only slight changes in concentration were observed in the MAPbBr₃ spectra. Based on these observations we propose a three-step degradation mechanism of perovskites. The degradation mechanism is used to explain the observed concentration changes and the role of halide ions in the structural stability of perovskites.

References:

[1] Choi, H., et al., Cesium-doped methylammonium lead iodide perovskite light absorber for hybrid solar cells. Nano Energy, 2014. 7: p. 80-85.

[2] Jeong, J., et al., Pseudo-halide anion engineering for α-FAPbI3 perovskite solar cells. Nature, 2021. 592(7854): p. 381-385.

[3] Saliba, M., et al., Incorporation of rubidium cations into perovskite solar cells improves photovoltaic performance. Science, 2016. 354(6309): p. 206.

[4] Srivastava, P. and M. Bag, Elucidating tuneable ambipolar charge transport and field induced bleaching at the CH3NH3PbI3/electrolyte interface. Physical Chemistry Chemical Physics, 2020. 22(19): p. 11062-11074.

[5] Wehrenfennig, C., et al., High charge carrier mobilities and lifetimes in organolead trihalide perovskites. Adv Mater, 2014. 26(10): p. 1584-9.

[6] Stranks, S.D., et al., Electron-Hole Diffusion Lengths Exceeding 1 Micrometer in an Organometal Trihalide Perovskite Absorber. Science, 2013. 342(6156): p. 341.

[7] Hwang, H., et al., Enhancing performance and stability of perovskite solar cells using hole transport layer of small molecule and conjugated polymer blend. Journal of Power Sources, 2019. 418: p. 167-175.

[8] Tiwari, U. and S. Dass. Moisture Stable Soot Coated Methylammonium Lead Iodide Perovskite Photoelectrodes for Hydrogen Production in Water. in Energy and Sustainable Futures. 2021. Cham: Springer International Publishing.

[9] Juarez-Perez, E.J., et al., Thermal degradation of CH3NH3PbI3 perovskite into NH3 and CH3I gases observed by coupled thermogravimetry–mass spectrometry analysis. Energy & Environmental Science, 2016. 9(11): p. 3406-3410.

[10] Kim, N.-K., et al., Investigation of Thermally Induced Degradation in CH3NH3PbI3 Perovskite Solar Cells using In-situ Synchrotron Radiation Analysis. Scientific Reports, 2017. 7(1): p. 4645.

[11] Kumar, A., et al., Understanding the thermal degradation mechanism of perovskite solar cells via dielectric and noise measurements. Nanotechnology, 2020. 31(36): p. 365403.

[12] Li, J., et al., Direct Evidence of Ion Diffusion for the Silver-Electrode-Induced Thermal Degradation of Inverted Perovskite Solar Cells. Advanced Energy Materials, 2017. 7(14): p. 1602922.

[13] Li, Y., et al., Degradation by Exposure of Coevaporated CH3NH3PbI3 Thin Films. The Journal of Physical Chemistry C, 2015. 119(42): p. 23996-24002.

[14] m, n., Zubair, et al., Instability in CH3NH3PbI3 perovskite solar cells due to elemental migration and chemical composition changes. Scientific Reports, 2017. 7(1): p. 15406.

[15] Zhidkov, I.S., et al., XPS evidence of degradation mechanism in CH3NH3PbI3 hybrid perovskite. Journal of Physics: Condensed Matter, 2019. 32(9): p. 095501.

[16] Syafutra, H., et al., Surface Degradation Mechanism on CH3NH3PbBr3 Hybrid Perovskite Single Crystal by a Grazing E-Beam Irradiation. Nanomaterials, 2020. 10(7).

[17] Sadoughi, G., et al., Observation and Mediation of the Presence of Metallic Lead in Organic–Inorganic Perovskite Films. ACS Applied Materials & Interfaces, 2015. 7(24): p. 13440-13444.

Acknowledgements:

The experimental measurements were carried out at beamline D1011 at MAX-lab synchrotron facility in Sweden The authors would like to thank DTA3 COFUND H2020/Marie Skłodowska Curie PhD Fellowship programme for partially funding this work. (Grant Agreement Number: 801604).
