Publication date: 10th April 2024
Solid-state batteries have emerged as a promising battery technology for the future, offering solutions to common issues associated with Li-ion batteries, particularly safety concerns related to the flammable nature of liquid electrolytes. Furthermore, solid-state batteries hold the potential for higher volumetric and gravimetric energy densities compared to Li-ion batteries1. Despite considerable advancements in solid-state battery development, the transition from successful lab-scale cells to commercially viable pouch cells remain a significant bottleneck in their commercialization journey, particularly when utilizing inorganic solid electrolytes2,3.
As a result, significant efforts have been directed towards developing large-scale synthesis techniques for Li6PS5Cl solid electrolyte, resulting in the emergence of commercial availability. However, in contrast to small-scale laboratory synthesis, commercial Li6PS5Cl production frequently results in a diverse array of particle sizes and distributions, which leads to significant challenges such as low-quality percolation network. In some cases, these challenges extend to the inclusion of particles larger than the composite cathode thickness when integrated into solid-state batteries, exacerbating difficulties related to achieving proper densification and resulting in suboptimal kinetics. Hence, further research is needed to elucidate how microstructural features such as the average particle size and distribution of Li6PS5Cl powder effects the electrochemical performance of slurry based casted Li6PS5Cl tapes and how the compact grain size and distribution, and solid electrolyte compact pore size and distribution would impact electrochemical performance.

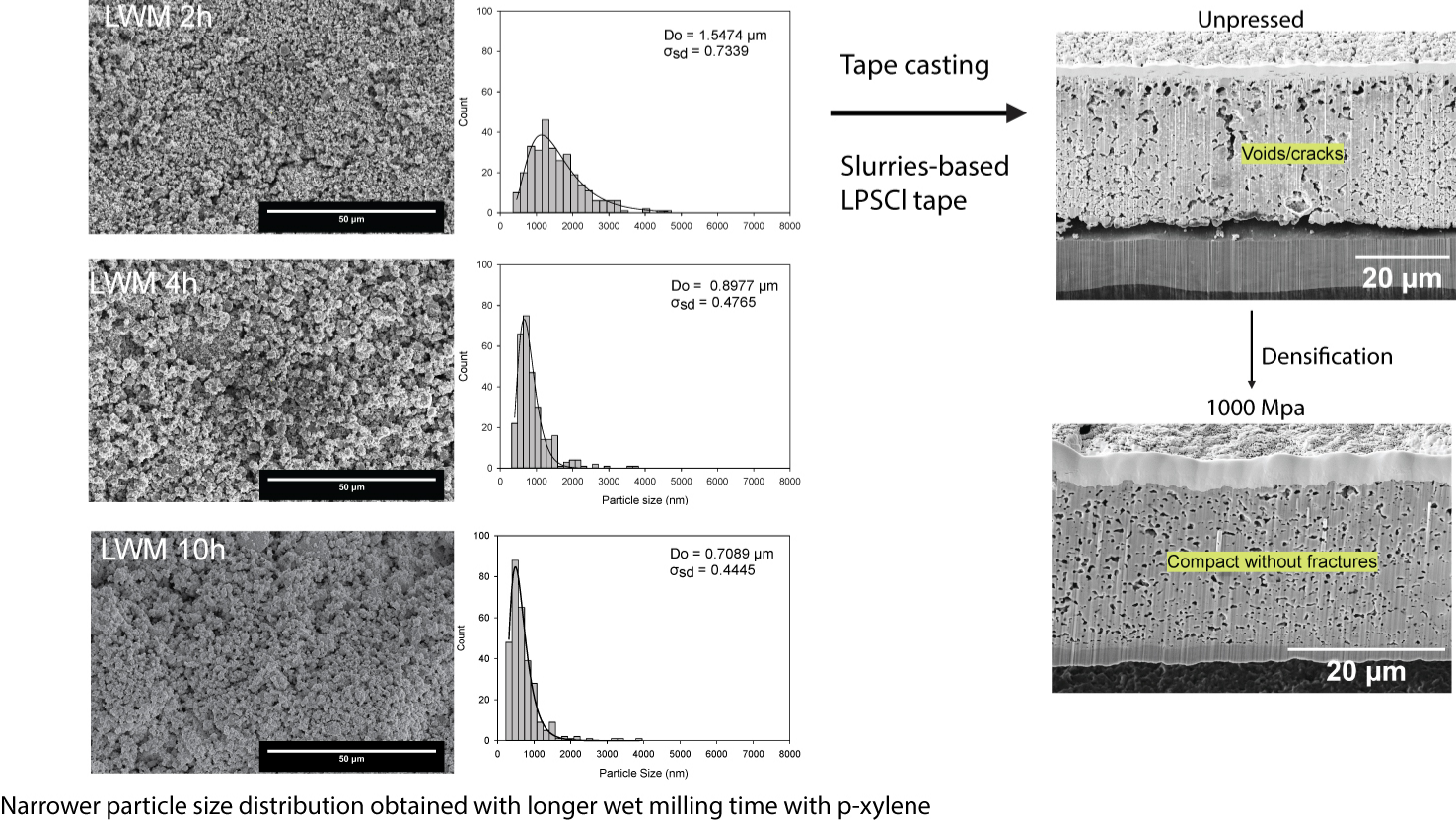

This study delves into optimizing argyrodite Li6PS5Cl particle size distribution while maintaining good Li-ion conductivity and subsequently improving the densification of slurry-based casted Li6PS5Cl tape. It investigates how the particle size distribution of Li6PS5Cl and pre-pressing conditions influence the percolating network. A range of characterization tools, including FIB-SEM, TEM, X-ray computed tomography, and temperature and pressure-dependent impedance spectroscopy, are utilized to establish connections between microstructure and Li-ion transport.
We acknowledge financial support by Austrian Federal Ministry for Digital and Economic Affairs, the National Foundation for Research, Technology and Development and the Christian Doppler Research Association (Christian Doppler Laboratory for Solid-State Batteries)
