Substantial Oxygen Loss and Chemical Expansion in Lithium-Rich Layered Oxides at Moderate Delithiation

Diego Rivera^a, Peter Csernica^a, William Chueh^a^,^e, Kit McColl^b, Grace Busse^a, David Shapiro^c, Saiful Islam^d

^aDepartment of Materials Science & Engineering, Stanford University

^bDepartment of Chemistry, University of Bath, Claverton Down, Bath BA2 7AY, United Kingdom

^cAdvanced Light Source, Lawrence Berkeley National Laboratory, Berkeley, California 94720, United States

^dDepartment of Materials, University of Oxford, Parks Road, Oxford, OX1 3PH, UK

^eStanford Institute of Materials and Energy Sciences, SLAC National Accelerator Laboratory, Menlo Park, CA 94025, USA

Proceedings of 24th International Conference on Solid State Ionics (SSI24)

Fundamentals: Experiment and simulation

London, United Kingdom, 2024 July 14th - 19th

Organizers: John Kilner and Stephen Skinner

Poster, Diego Rivera, 556
Publication date: 10th April 2024

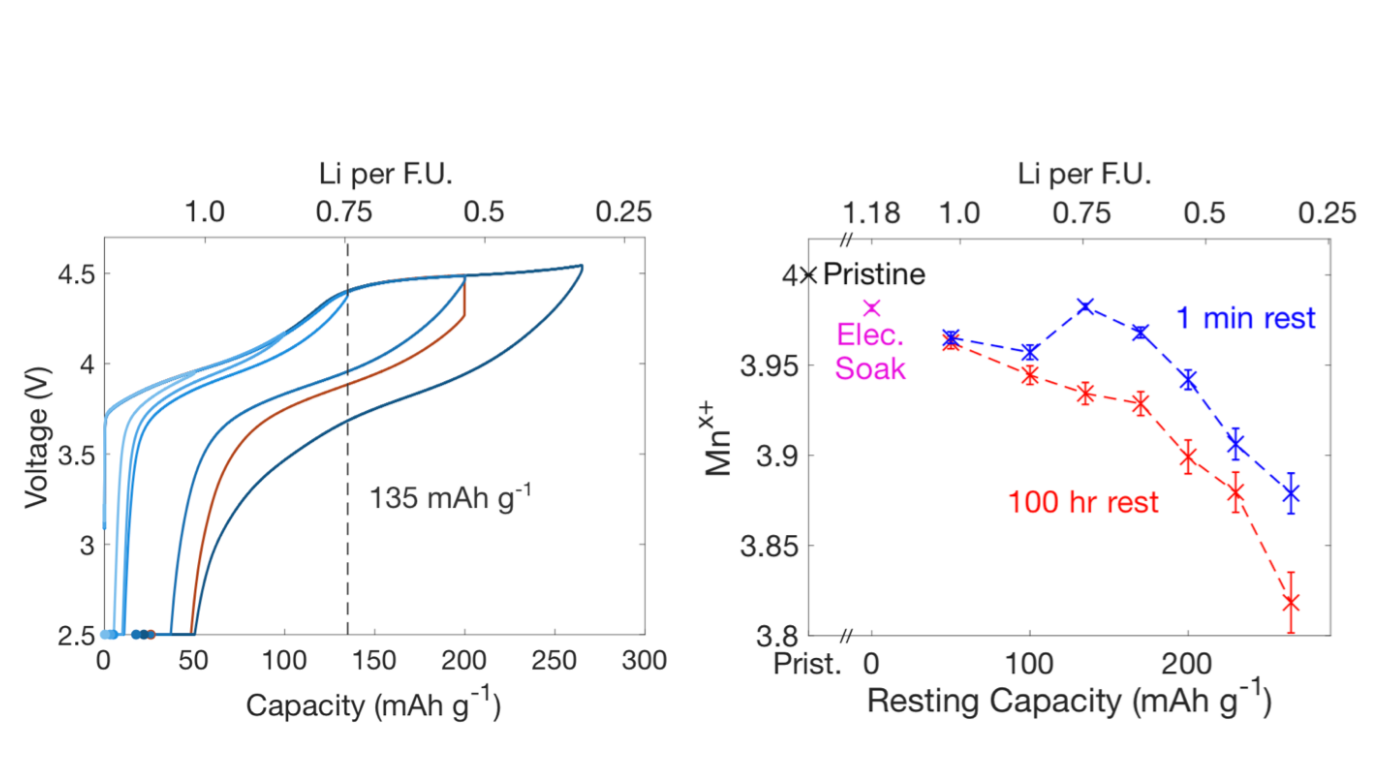

Delithiation of layered oxide electrodes triggers irreversible oxygen loss, one of the primary degradation modes in lithium-ion batteries. However, the delithiation-dependent mechanisms of oxygen loss remain poorly understood. Here, we investigate the oxygen nonstoichiometry in Li- and Mn-rich Li1.18-xNi0.21Mn0.53Co0.08O2-δ electrodes as a function of Li content by utilizing cycling protocols with long open-circuit voltage steps at varying states of charge. Surprisingly, we observe significant oxygen loss even at moderate delithiation, corresponding to 2.5, 4.0 and 7.6 mL O2 g-1 after resting at 135, 200, and 265 mAh g-1 (relative to the pristine material) for 100 h. Our observations suggest an intrinsic oxygen instability consistent with predictions of high equilibrium oxygen activity at intermediate potentials. From a mechanistic viewpoint, we show that cation disorder greatly lowers the oxygen vacancy formation energy by decreasing the coordination number of transition metals to certain oxygen ions. In addition, we observe a large chemical expansion coefficient with respect to oxygen nonstoichiometry, which is about three times greater than those of classical oxygen-deficient materials such as fluorite and perovskite oxides. Our work challenges the conventional wisdom that deep delithiation is a necessary condition for oxygen loss in layered oxide electrodes and highlights the importance of calendar aging for investigating oxygen stability.

Acknowledgements:

M.S.I. and K.M. are grateful to the Faraday Institution CATMAT project (EP/S003053/1, FIRG016) for financial support, and to the HEC Materials Chemistry Consortium (EP/R029431/1) for Archer-2 supercomputer facilities. P.M.C. acknowledges support through the Stanford Graduate Fellowship as a Winston and Fu-Mei Chen fellow and through the National Science Foundation Graduate Research Fellowship under Grant no. DGE-1656518. D.F.R. acknowledges support through the National Science Foundation Graduate Research Fellowship under Grant no. DGE-1656518. Use of the SSRL, SLAC National Accelerator Laboratory, is supported by the U.S. Department of Energy, Office of Science, Office of Basic Energy Sciences under Contract No. DE-AC02-76SF00515. This research used resources of the Advanced Light Source, which is aDOE Office of Science User Facility under contract no. DE-AC02-05CH11231.

nanoGe is a prestigious brand of successful science conferences that are developed along the year in different areas of the world since 2009. Our worldwide conferences cover cutting-edge materials topics like perovskite solar cells, photovoltaics, optoelectronics, solar fuel conversion, surface science, catalysis and two-dimensional materials, among many others.

MATSUS

Previously nanoGe Spring Meeting (NSM) and nanoGe Fall Meeting (NFM), MATSUS is a multiple symposia conference focused on a broad set of topics of advanced materials preparation, their fundamental properties, and their applications, in fields such as renewable energy, photovoltaics, lighting, semiconductor quantum dots, 2-D materials synthesis, charge carriers dynamics, microscopy and spectroscopy semiconductors fundamentals, etc.

International Conference on Hybrid and Organic Photovoltaics

International Conference on Hybrid and Organic Photovoltaics (HOPV) is celebrated yearly in May. The main topics are the development, function and modeling of materials and devices for hybrid and organic solar cells. The field is now dominated by perovskite solar cells but also other hybrid technologies, as organic solar cells, quantum dot solar cells, and dye-sensitized solar cells and their integration into devices for photoelectrochemical solar fuel production.

Asia-Pacific International Conference on Perovskite, Organic Photovoltaics and Optoelectronics

The main topics of the Asia-Pacific International Conference on Perovskite, Organic Photovoltaics and Optoelectronics (IPEROP) are discussed every year in Asia-Pacific for gathering the recent advances in the fields of material preparation, modeling and fabrication of perovskite and hybrid and organic materials. Photovoltaic devices are analyzed from fundamental physics and materials properties to a broad set of applications. The conference also covers the developments of perovskite optoelectronics, including light-emitting diodes, lasers, optical devices, nanophotonics, nonlinear optical properties, colloidal nanostructures, photophysics and light-matter coupling.

International Conference on Perovskite Thin Film Photovoltaics Perovskite Photonics and Optoelectronics

The International Conference on Perovskite Thin Film Photovoltaics Perovskite Photonics and Optoelectronics (NIPHO) is the best place to hear the latest developments in perovskite solar cells as well as on recent advances in the fields of perovskite light-emitting diodes, lasers, optical devices, nanophotonics, nonlinear optical properties, colloidal nanostructures, photophysics and light-matter coupling.
