F− Conduction in Fluorosulphide La2SrF4S2 and Cation-anion Engineering for Conductivity Enhancement
Chengchao Zhong a, Shintaro Tachibana a, Tailei Xu a, Yu Shintomi a, Keiji Shimoda a, Takashi Saito b, Takashi Kamiyama b, Shogo Kawaguchi c, Yuki Orikasa a
a Department of Applied Chemistry, Ritsumeikan University, Japan
b Neutron Science Division, High Energy Accelerator Research Organization, Japan
c Super Photon Ring 8-GeV (SPring8), JASRI, Japan, 679-5198, Japón, Sayo, Japan
Proceedings of 24th International Conference on Solid State Ionics (SSI24)
Fundamentals: Experiment and simulation
London, United Kingdom, 2024 July 14th - 19th
Organizers: John Kilner and Stephen Skinner
Oral, Chengchao Zhong, presentation 087
Publication date: 10th April 2024

The development of high-performance fluoride-ion (F) conductors is essential for the practical application of all-solid-state F batteries. To date, the crystal structures of the F conductors have been mainly limited to perovskite-, fluorite- and tyssonite-type fluorides. However, the room temperature conductivity of these F conductors is several orders of magnitude lower than that of cationic conductors. Furthermore, strategies to improve F conductivity are mainly limited to introducing defects in the crystal structure, which lags considerably behind the abundant means of conductivity enhancement in cationic conductors, such as inductive effects1 and paddlewheel effects2.

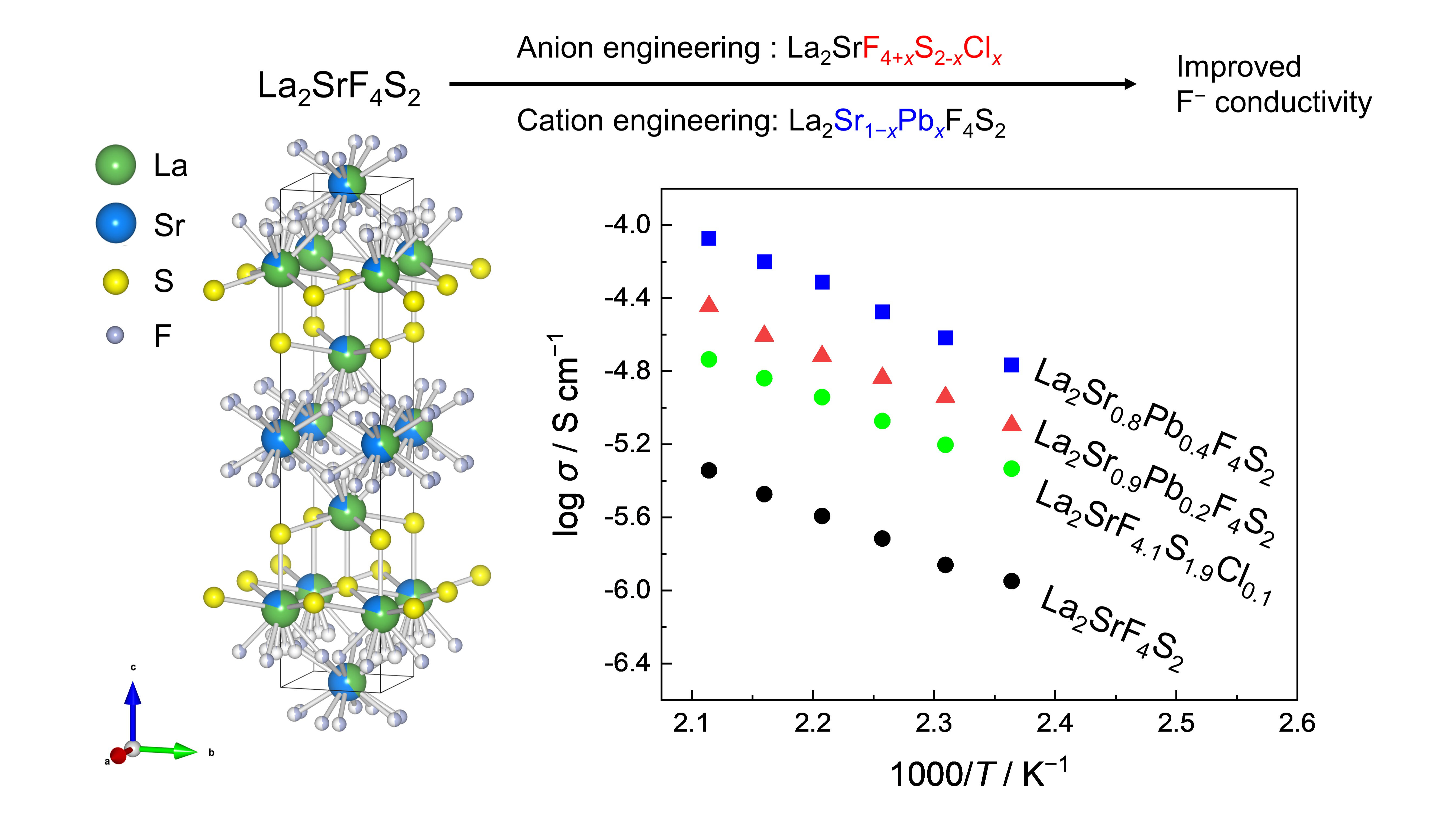

In mixed-anion compounds that containing more than one anion in the structure, the presence of anions with different polarization rates and electronegativity from F allows the construction of new crystal structures that cannot be obtained in single-anion compounds3. In this study, F conduction in fluorosulfide La2SrF4S2 was investigated[4]. In La2SrF4S2, the triple-fluorite layer La2SrF4 allows for a two-dimensional F conduction, which is not found in single anion fluorides. The presence of a sulphur layer widens the conduction space of the F layer and weakens the interaction between cations and F. Furthermore, we attempted to improve the F conductivity by cation-anion engineering. Specifically, (i) La2SrF4+xS2-xClx, in which S2− was changed to Cl to introduce excess F, and (ii) La2Sr1-xPbxF4S2, in which Sr2+ was changed to Pb2+ with 6s2 lone pair electrons, were synthesized and the change in F conductivity were explored and explained from a crystallographic point of view.

(i) The ionic conductivity of La2SrF4.1S1.9Cl0.1 at 160 °C was 6.26 × 10−6 S cm−1, which is five times higher than that of La2SrF4S2. On the other hand, the activation energy of La2SrF4.1S1.9Cl0.1 is 0.51 eV, which is comparable to 0.53 eV of La2SrF4S2. The increase in the pre-exponential factor can be attributed to the introduction of excess F in the lattice by replacing divalent S2− with monovalent Cl. This suggests that the use of mixed-anion compounds allows carrier engineering by anions, which is different from the carrier control of by cation substitution in previous F conductors.

(ii) The ionic conductivity of La2Sr0.6Pb0.4F4S2 at 160 °C was 2.56 × 10−4 S cm−1, which are both higher than those of La2SrF4S2 and La2SrF4.1S1.9Cl0.1. The amount of F carriers and the F-F distance did not change much before and after the introduction of Pb2+, suggesting that there are factors other than those previously considered responsible for the increased pre-exponential factor. 19F MAS NMR showed that the number of F in the hetero-cationic environment increased after the introduction of Pb2+, suggesting that the distorted cationic sublattice is partly responsible for the conductivity enhancement. Also, 6s2 lone electron pairs in Pb2+ may also contribute to the increase in F conductivity.

In conclusion, using the mixed-anion compound La2SrF4S2 as a model, we proposed new strategies to improve F conductivity by cation-anion engineering.
