Compositional and interfacial engineering yield high-performance and stable p-i-n perovskite solar cells scaled to mini-modules
Janardan Dagar a, Markus Fenske b, Amran Al-Ashouri c, Christof Schultz d, Bor Li c, Hans Köbler e, Rahim Munir f, Gopinath Parmasivam a, Jinzhao Li a, Rutger Schlatmann b, Steve Albrecht c, Antonio Abate e, Eva unger a
a Helmholtz-Zentrum Berlin, HySPRINT Innovation Lab, Young Investigator Group Hybrid Materials Formation and Scaling, Kekulestraße, 5, Berlin, Germany
b PVcomB / Helmholtz-Zentrum Berlin für Materialien und Energie GmbH, Schwarzschildstraße, 3, Berlin, Germany
c Helmholtz-Zentrum Berlin für Materialien und Energie GmbH, Young Investigator Group Perovskite Tandem Solar Cells, Berlin, Germany
d HTW Berlin – University of Applied Sciences, Wilhelminenhofstraße, 75, Berlin, Germany
e Helmholtz-Zentrum Berlin für Materialien und Energie, Young Investigator Group Active Materials and interfaces for stable perovskite solar cells, Kekulestraße, 5, Berlin, Germany
Proceedings of Online Conference on Perovskites for Energy Harvesting: From Fundamentals to Devices (PERENHAR)
Online, Spain, 2020 November 19th - 20th
Organizers: Dinesh Kabra, Sandheep Ravishankar, Angshuman Nag and Priya Mahadevan
Oral, Janardan Dagar, presentation 020
Publication date: 2nd November 2020

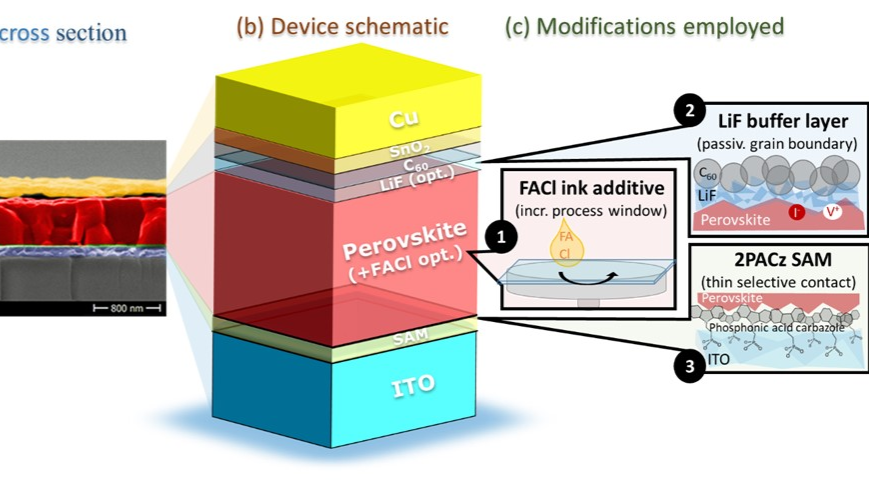

We scaled the optimized p-i-n-type device architecture to larger areas and achieved fully laser patterned series-interconnected mini-modules of 19.4% on 2.2 cm2 active area. Through optimization of the perovskite precursor composition and interfaces to selective contacts, we achieved a perovskite solar cell (PSC) with 22.3% power conversion efficiency (PCE). This is a new record for a PSC with an absorber bandgap of 1.63 eV. The device maintained about 80% of the initial average PCE during maximum power point tracking for more than 700 hours. The improvements can be attributed to the synergy between 1) an improved perovskite absorber quality when introducing formamidinium chloride (FACl) as an additive in the “triple cation” Cs0.05FA0.79MA0.16PbBr0.51I2.49 (Cs-MAFA) perovskite precursor ink, 2) reduced recombination losses by utilizing a lithium fluoride (LiF) interfacial buffer layer, and 3) high-quality hole-selective contacts with a self-assembled monolayer (SAM) of [2-(9H-carbazol-9-yl)ethyl]phosphonic acid (2PACz) on ITO electrodes. A robust device architecture and reproducible deposition methods are fundamental for high performance and stable large-area single junction and tandem modules based on PSCs.
