Optimization of All-Perovskite Tandem Solar Cells: Currently Availabe Materials Enable 35% Efficiency
Kurt Taretto a, Marcos Soldera a b, Alejandro Koffman-Frischknecht a
a Instituto de Investigación y Desarrollo en Ingeniería de Procesos, Biotecnología y Energías Alternativas (PROBIEN, CONICET-UNCo), Argentina
b Institut für Fertigungstechnik, Technische Universität Dresden, Germany, Germany
International Conference on Hybrid and Organic Photovoltaics
Proceedings of Online International Conference on Hybrid and Organic Photovoltaics (OnlineHOPV20)
Online, Spain, 2020 May 26th - 29th
Organizers: Tracey Clarke, James Durrant, Annamaria Petrozza and Trystan Watson
Poster, Kurt Taretto, 056
Publication date: 22nd May 2020

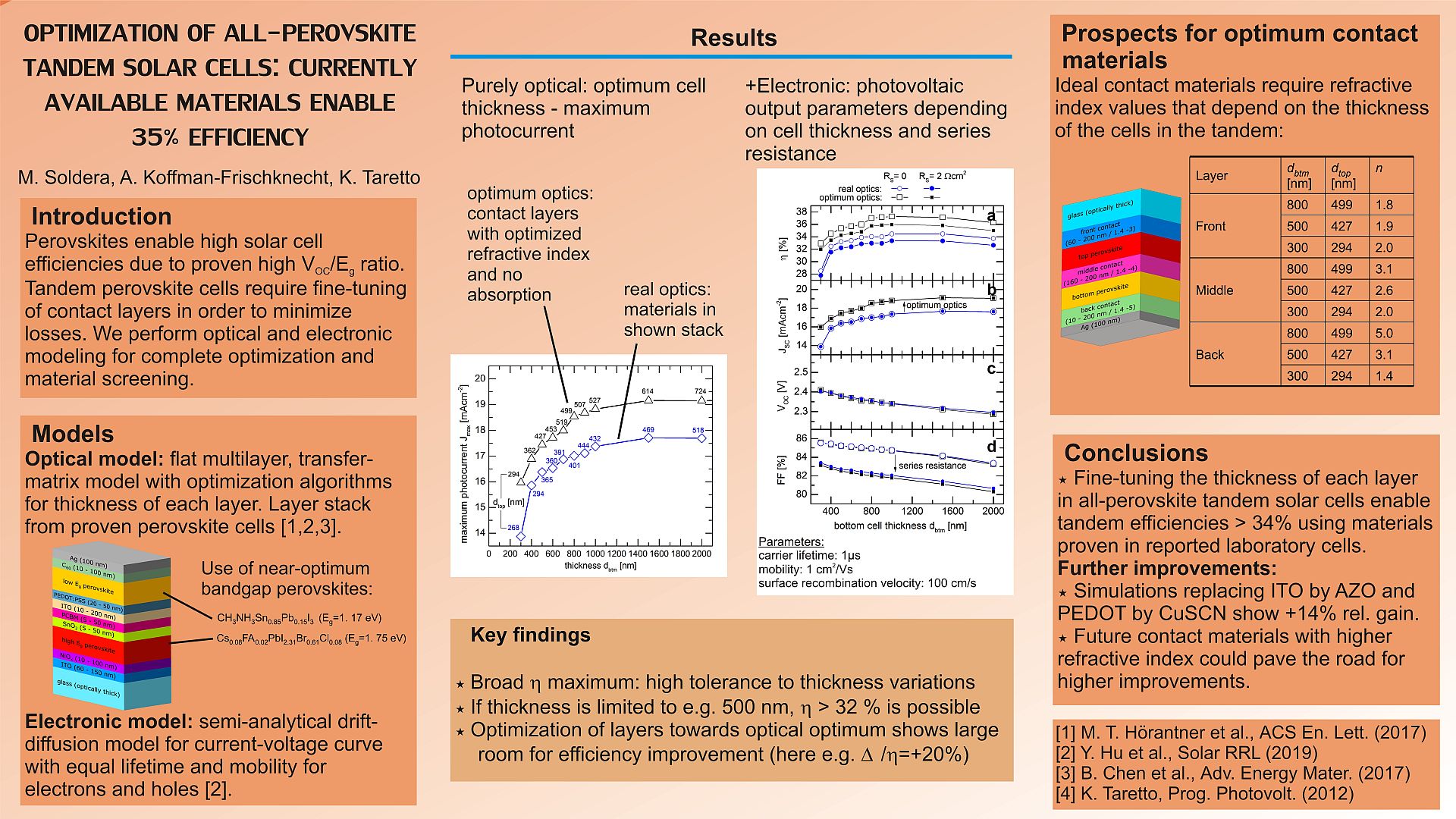

ePoster:

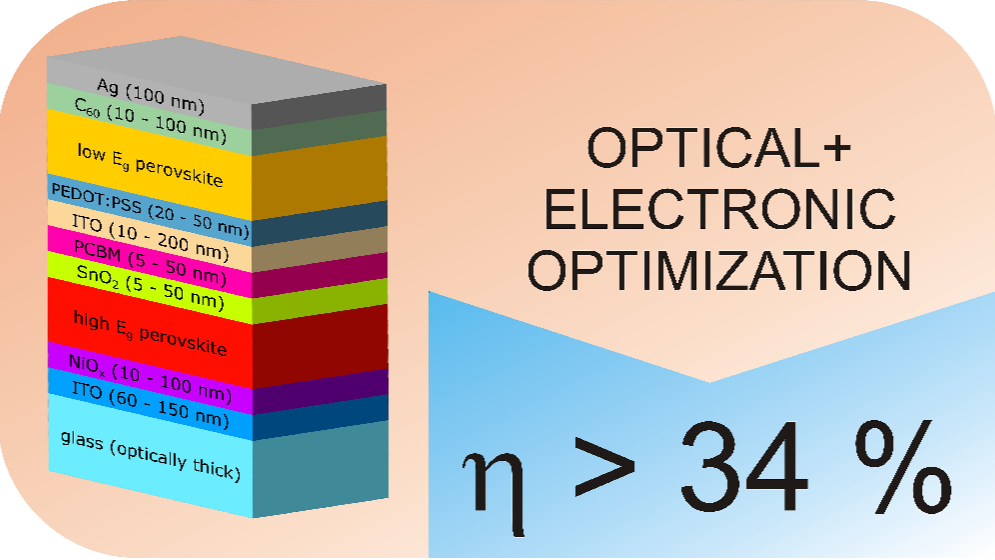

definitive breakthrough of perovskite solar cells towards large scale industrialization is believed to be the demonstration of higher efficiencies than conventional silicon technology, suggesting the exploration of perovskite tandem cell configurations. Since high efficiency tandem solar cells require careful optimization of photoactive as well as contact and additional functional layers, we propose an optical-electrical model to obtain the optimum layer thicknesses and the attainable electrical output parameters of two-terminal perovskite-perovskite tandem solar cells. The optical model takes into account the coherent propagation of light through the layer stack comprising two perovskite semiconductors and the corresponding contact layers, while the electrical model assumes two series-connected analytical current/voltage equations for pin solar cells. This model allows to assess the impact of the main physical parameters on each perovskite layer without requiring the high specificity needed in more rigorous numerical simulations. Efficiencies above 34 % are predicted considering available perovskites with non-optimum bandgap and contact materials already proven in efficient laboratory solar cells. The requisite to attain such efficiencies is that recombination at the interfaces between the perovskite and contact materials is kept low in both bottom and top cells. Furthermore, within the assumption of non-optimum bandgaps of currently available perovskites, the simulation results suggest that efficiencies around 37 % are possible when adopting contact materials with smaller absorption, more adequate refraction indices, and lower resistivity.
