Proceedings of nanoGe Spring Meeting 2022 (NSM22)
DOI: https://doi.org/10.29363/nanoge.nsm.2022.031
Publication date: 7th February 2022
Benefiting from their large compositional space, direct bandgap nature, and outstanding structural stability,[1–4] vacancy-ordered layered double perovskites with formula Cs4M(II)M(III)2X12 (M(II): Cu2+, Mn2+; M(III): Bi3+, Sb3+, In3+; X: Cl-, Br-, I-), have recently attracted increasing attention as substitutive materials of lead-based halide perovskites for potential commercial optoelectronic applications. The layered double perovskite structure comprises one layer of [M(II)X6]4- octahedra inserted in between two layers of [M(III)X6]3- octahedra. As a representative, Cs4CuSb2Cl12 has been successfully synthesized both in the form of single-crystalline powder[2] and NCs,[3,5] exhibiting a narrow direct bandgap (1.0–1.8 eV) and impressive stability, which however still suffers from the high toxicity of Sb element and the absence of emission at room temperature. To overcome these drawbacks, Cs4CuIn2Cl12, with toxic Sb3+ substituted by relatively non-toxic In3+, could be a promising candidate to fulfill the requirement of compositional engineering and optical tunability particularly in the UV range. Yet, to date, the synthesis of Cs4CuIn2Cl12 layered double perovskites has not yet been reported for neither bulk film nor NCs.

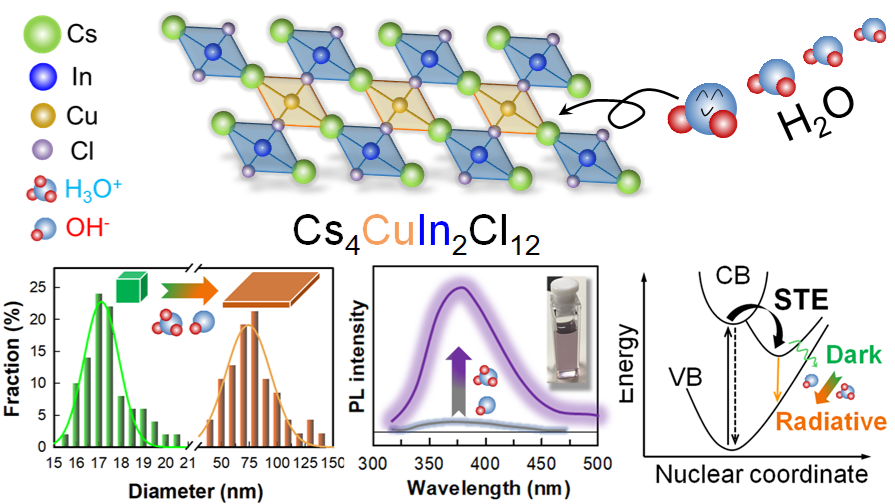

Herein, we report the first-ever colloidal synthesis of lead-free Cs4CuIn2Cl12 layered double perovskite NCs using a modified hot-injection method.[5,6] The synthetic details are described in the Supporting Information (SI). While a standard hot-injection reaction in moisture-free environment resulted in Cs4CuIn2Cl12 with a very low photoluminescence quantum yield (PLQY) of 0.12%, we found that the handling of synthesis precursors in the presence of moisture (RH~40%) enhances PLQY by more than one order of magnitude up to 1.70 %. Water-assisted in-situ synthesis has been recognized as an effective strategy to tune the optical properties and stability for both lead-based[7,8] and lead-free halide perovskite NCs[9,10] via the controlling of NCs size, shape, and crystallinity. Nevertheless, there is still a lack of deep understanding of how water influences NCs growth regime and corresponding PL property, especially for lead-free double perovskite NCs. The introduction of moisture in the precursor (namely “wet” precursor conditions) of Cs4CuIn2Cl12 NCs (w-Cs4CuIn2Cl12) induces the morphological transformation from 3D nanocubes (NCus) to 2D nanoplatelets (NPLs), driven by the ionized H3O+ and OH- from the water content as additional capping ligands. The ultrafast transient absorption studies suggest a strengthened self-trapped exciton (STE) effect for w-Cs4CuIn2Cl12 NCs compared to the NCs synthesized in “dry” conditions (d-Cs4CuIn2Cl12 NCs), resulting in the conversion of dark transitions into radiative transitions, which directly contributes to the PLQY.
Dr. Mari Honkanen and Tampere Microscopy Center (TMC) are gratefully acknowledged for the TEM images and EDS analysis. M.L. acknowledges the Finnish Cultural Foundation (No. 00210670) for funding. P.V. thanks Jane & Aatos Erkko Foundation (project ASPIRE). A.M. thanks the financial support of Tampere University, Faculty of Engineering and Natural Sciences. This work is part of the Academy of Finland Flagship Programme, Photonics Research and Innovation (PREIN), Decision No. 320165. S.P.R. acknowledges the Australian government through the Australian Research Council (ARC) under the Centre of Excellence scheme (Project No. CE170100026) and the National Computational Infrastructure (NCI), Australia.
