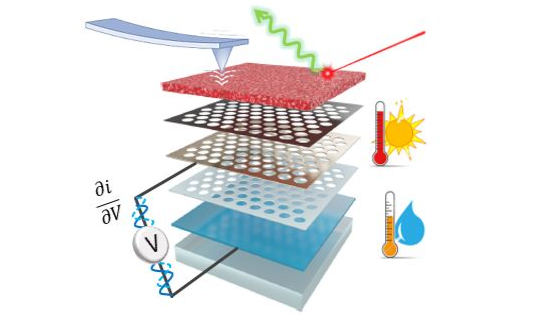

In back-contact electrode (BCE) perovskite solar cells (PSCs) architecture, the anode, cathode and selective layers coexist in the bottom perovskite interface while the top surface remains exposed. This results in two main advantages; first, it eliminates the parasitic light-absorption losses that are inherent to conventional sandwich-architecture devices and, second, it enables the use of in-situ characterization of the perovskite layer with techniques that are limited by the opaque metal electrode or top selective layers. However, the fabrication methods for these unconventional architectures rely heavily on expensive photolithography, which limits scalability. We present an alternative cost-effective microfabrication technique in which the conventional photolithography process is replaced by microsphere lithography in which a close-packed polystyrene microsphere monolayer acts as the patterning mask for the honeycomb-shaped electrodes.[1] Using microsphere lithography, we achieve highly efficient devices having a stabilized power conversion efficiency (PCE) of 8.6%, twice the reported value using photolithography. Microsphere lithography also enabled the fabrication of the largest back-contact PSC to date, with an active area of 0.75 cm2 and a stabilized PCE of 2.44%. We will provide a comprehensive overview of the particularities of BCE on the device optoelectronic performance and suggest applications for in-situ/operando measurements.
