Reassessing the significance of reduced aggregation and crystallinity of naphthalene diimide-based copolymer acceptors in all-polymer solar cells
Doan Vu a, Martyn Jevric b, Jonas M. Bjuggren b, Chao Wang a, Xun Pan b, Lars Thomsen c, Eliot Gann d, Mats R. Andersson b, Christopher R. McNeill a
a Department of Materials Science and Engineering, Monash University, Clayton, Victoria, 3800 Australia, Wellington Rd, Clayton, Australia
b Flinders Institute for Nanoscale Science and Technology, Clovelly Park SA 5042, Australia, Clovelly Park, Australia
c Australian Synchrotron, ANSTO, Blackburn Road, 800, Clayton, Australia
d Materials Measurement Science Division, National Institute of Standards and Technology, Gaithersburg, Maryland 20899, United States, Gaithersburg, Maryland 20899, EE. UU., Gaithersburg, United States
Materials for Sustainable Development Conference (MATSUS)
Proceedings of Materials for Sustainable Development Conference (MAT-SUS) (NFM22)
#BRIGHT - Recent Breakthroughs in Organic Photovoltaics
Barcelona, Spain, 2022 October 24th - 28th
Organizers: Thomas Anthopoulos and Safa Shoaee
Poster, Doan Vu, 224
Publication date: 11th July 2022

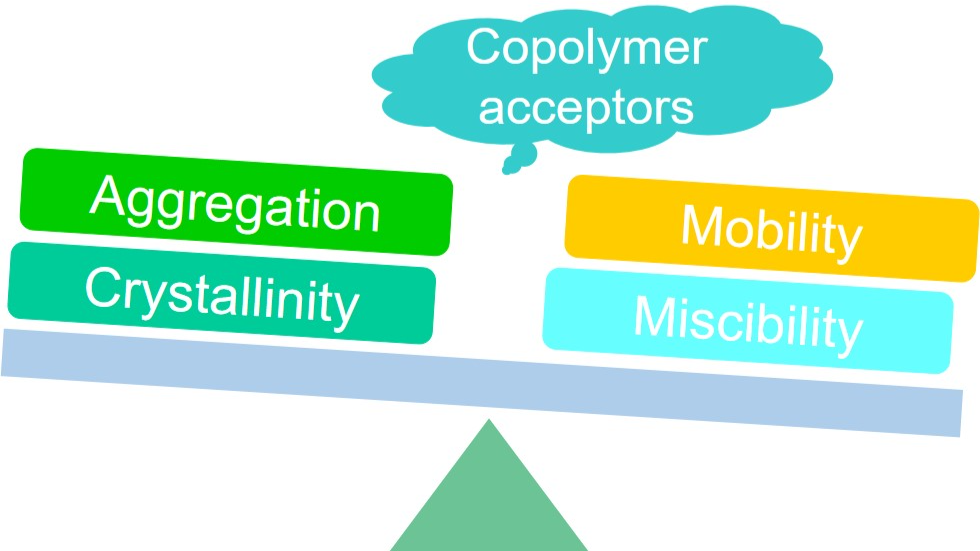

Understanding morphology control plays a crucial role in realizing high performance polymer solar cells (PSCs). In all-polymer solar cells (all-PSCs), blend films usually suffer from large-scaled phase separation due to either poor miscibility between donor and acceptor or small contribution from entropy mixing between two components [1]. To address these issues, random copolymer strategy has been introduced with aims to finely control the aggregation and crystallinity of semiconducting polymers for tuning the blend morphology then improving the photovoltaic performance of all-PSCs. In this work, a series of three copolymers acceptors were synthesized with different amounts of 3-octylthiophene (OT) replacing bithiophene (T2) to give PNDI-OTx copolymers where x = 5%, 10%, or 15%. Another polymer, namely PNDI2OD-C8T2, consisting of naphthalene diimide (NDI) polymerized with 3-octyl-2,2’-bithiophene (C8T2) is also synthesized for comparison.

In comparison with the reference PNDI2OD-T2, the solution aggregation and thin film crystallinity of PNDI-OTx are systematically decreased with increasing OT amount, evidenced by temperature-dependent UV-Vis and grazing incidence wide angle X-ray scattering (GIWAXS) measurements. PNDI2OD-C8T2 is also found to have reduced solution aggregation and thin film crystallinity relative to PNDI2OD-T2. However, the photovoltaic performance of all-PSCs based on J71:PNDI-OTx and J71:PNDI2OD-C8T2 blends are poorer than that of the reference J71:PNDI2OD-T2 system. The morphological studies demonstrate that reduced aggregation and crystallinity do not improve the blend morphology, with coarser phase separation found in J71:PNDI-OTx and J71:PNDI2OD-C8T2 blends which could be due to poor miscibility between J71 and polymer acceptors. Alternatively, unaggregated polymer acceptor chains could cause earlier phase separation onset during spin coating method. Furthermore, the OT-modified copolymers are found to have reduced electron mobilities relative to PNDI2OD-T2. The results here suggest that reduced aggregation and less crystallinity of random copolymer acceptors do not always produce favorable morphology in polymer:polymer blends and do not guarantee for improvement in photovoltaic performance [2]. Instead, an effective copolymer acceptor is likely required to exhibit enhanced miscibility with the donor polymer while maintaining good electron mobility for efficient solar cell devices [2].

This work was performed in part at the Soft X-ray and SAXS/WAXS beamlines at the Australian Synchrotron, part of ANSTO. AFM was performed at Monash Centre for Nanofabrication (MCN) in the Victorian node of Australian National Fabrication Facility (ANFF). This research used the Spectroscopy Soft and Tender (SST-1) beamline of the National Synchrotron Light Source II, a U.S. Department of Energy (DOE) Office of Science User Facility operated for the DOE Office of Science by Brookhaven National Laboratory under Contract DE-SC0012704. This activity received funding from ARENA as part of ARENA’s Research and Development Program—Solar PV Research. The views expressed herein are not necessarily the views of the Australian Government, and the Australian Government does not accept responsibility for any information or advice contained herein. This work was also supported by the Australian Research Council (DP190102100).

© FUNDACIO DE LA COMUNITAT VALENCIANA SCITO
We use our own and third party cookies for analysing and measuring usage of our website to improve our services. If you continue browsing, we consider accepting its use. You can check our Cookies Policy in which you will also find how to configure your web browser for the use of cookies. More info
