Proceedings of Materials for Sustainable Development Conference (MAT-SUS) (NFM22)
DOI: https://doi.org/10.29363/nanoge.nfm.2022.186
Publication date: 11th July 2022
Many efforts in the field of Li-ion batteries are focusing on the development and implementation of solid electrolytes in order to overcome the drawback related to their liquid counterparts such as: flammability, complex encapsulation requirements, high cost and complexity manufacturing processes. Li-conducting glass-based materials gained attention in the last years as solid state electrolytes for lithium batteries, thanks to their good ionic conductivity at room temperature (10-3-10-4 S cm-1) and their wide electrochemical stability windows.

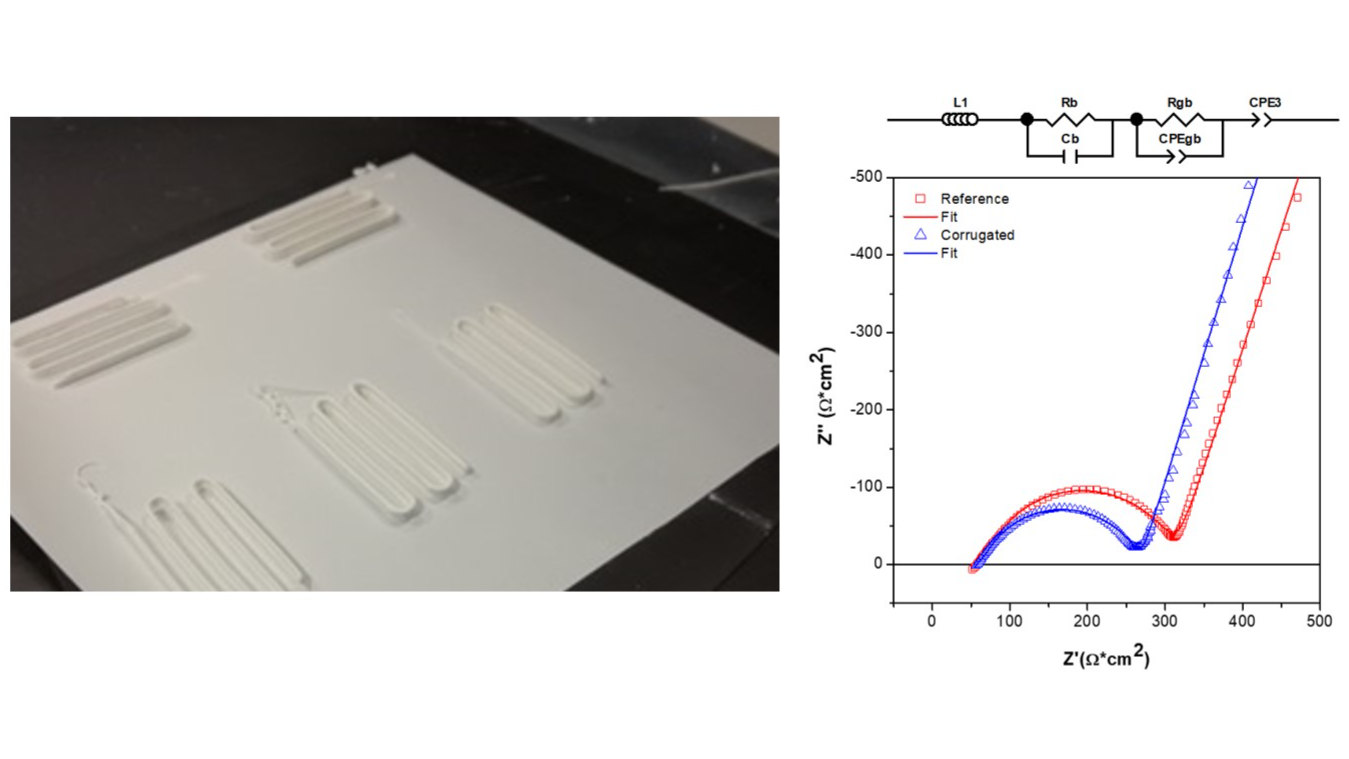

In the present work, Li1.5Al0.5Ge1.5P3O12 (LAGP) glass was 3D-printed by robocasting and stereolitography (SLA) in free-form robust self-standing structures with the main target to obtain 3D batteries with high active area (allowing high specific energy and power per unit volume). The use of 3D printing techniques allowed the fabrication of simple as well as complex architectures, with enhanced contact area with the electrodes. The inks and the printing processes were both optimized in order to reach an accuracy up to ≈100 µm. The printed structures demonstrated an excellent densification after the firing/sintering treatment, as a result of the optimization of the inks formulation, printing process and sintering conditions. Furthermore, ionic conductivity of 3D-printed LAGP electrolyte resulted to be 1.8 10-4 S cm-1 at room temperature, in accordance with the values measured on the same material processed with conventional methods. No detrimental reaction products or degradation phenomena were detected by chemical analyses after the sintering.
3D-printed LAGP was successfully cycled in contact with metal-Li. The interface with the anode was previously engineered by depositing 200nm of metallic Ge in order to prevent detrimental reactions between the two materials. A symmetrical cell Li/Ge coated LAGP/Li was successfully cycled for more than 100h.
The successful implementation of 3D printing techniques in LAGP processing represents an innovative approach that will push further the development of all solid state Li-ion batteries with enhanced energy density, thanks to the easy fabrication of 3D structured solid electrolytes.
- This project has received funding from the European Union’s Horizon 2020 research and innovation programme under the Marie Skłodowska-Curie grant agreement No 841937;
- This work received funding from the project 3DPASSION (RETOS INV, PID2019-107106RB-C31).
