Proceedings of nanoGe Fall Meeting19 (NFM19)
DOI: https://doi.org/10.29363/nanoge.nfm.2019.045
Publication date: 18th July 2019
Efficient hydrogen (H2) evolution through the (photo)electrochemical splitting of water is essential to drive a green hydrogen economy. At solar-to-hydrogen (STH) efficiencies around 10 %, the average price of H2 produced is slightly higher than $10 000 ton-1 [1]. The current market value of hydrogen from steam methane reforming is only $1 400 ton-1 [1-2], implying that there is little incentive for the development of alternative processes for H2 production. Hence, the economic profitability of hydrogen production through (photo)electrochemical water splitting must be increased. A suitable route might be the simultaneous production of high-value chemicals at the anode.
In ‘classic’ electrochemical water splitting, oxygen is formed at the anode [2]:
2 H2O → O2 + 4H+ + 4e- E0 (O2/H2O) = 1.23 V vs RHE
The net worth of O2, however, is only $35 ton-1. An alternative anodic reaction is the selective partial oxidation of water to hydrogen peroxide (H2O2) [2]:
2 H2O → H2O2 + 2H+ + 2e- E0 (H2O2/H2O) = +1.78 V vs RHE
With a net worth value of $500-1200 ton-1 and a growing H2O2 demand, hydrogen production with concomitant H2O2 has great promise in future (photo)electrochemical applications. Although not many reports have been published on anodic H2O2 production, the feasibility has recently been demonstrated theoretically and experimentally. In particular, BiVO4 has been referred to as a promising (photo)electrocatalyst [3-4]. Furthermore, it has been advocated that using bicarbonate as an electrolyte is essential to achieve high selectivity for anodic H2O2 production.

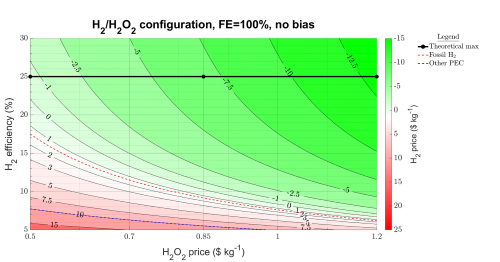

In this work, we present a techno-economic analysis to address whether H2O2 production at the anode as an alternative to oxygen is a feasible method to make (photo)electrochemical H2 production economically more attractive for industry. The minimum hydrogen prices that can theoretically be achieved to reach a break-even-point will be discussed. Furthermore, we performed a sensitivity analysis to demonstrate which parameters need to be optimized to realize these hydrogen prices as quickly as possible. Using the same means, we will elaborate on the techno-economics of simultaneous anodic and cathodic H2O2 production as well. Finally, we confirm experimentally that selective partial oxidation of water to H2O2 is possible. Challenges that need to be overcome will be discussed.
