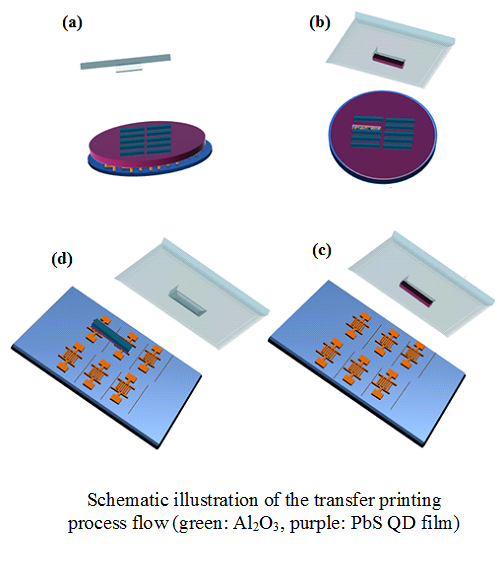

Quantum dots (QDs) have attracted considerable attention in the development of various optoelectronic applications. The scalable heterogeneous integration of high quality, yet stable QD films is required for low-cost sensors based on these materials. Here, we demonstrate the transfer printing of microscale patterns of Al2O3-passivated PbS QD films to realize large-scale integrated photodetector arrays with a 1st excitonic absorption peak at 2.1 µm wavelength. The process provides a facile approach to selectively pick-and-print passivated QDs assemblies on device structures with high precision. Transfer-printed photoconductor devices were realized and characterized at low bias voltage and optical power. Under 10 nW light illumination, the responsivity of our devices obtained at 1 V bias reached a maximum value of 25 A/W and 85 A/W for PbS QD films of 88 nm and 140 nm thick, respectively. This transfer printing approach enables the intimate integration of QD films / photoconductors with different cut-off wavelengths, enabling advanced, low-cost devices such as SWIR hyperspectral imagers.
We acknowledge support by the European Commission via the Marie-Sklodowska Curie action Phonsi (H2020-MSCA-ITN-642656).
