Artificial Visual Memory Systems Based on Metal Halide Perovskite Memristors
Laura Munoz-Diaz a b, Alvaro Julian Rosa b, Karl Cedric Gonzales b, Antonio Guerrero b, Agustin Bou b, Juan Bisquert b
a Electronic Technology Departament, Universidad Rey Juan Carlos
b Institute of Advanced Materials (INAM), Universitat Jaume I, Castelló de la Plana, Castelló 12006, Spain
Proceedings of Materials, devices and systems for neuromorphic computing 2022 (MatNeC22)
Groningen, Netherlands, 2022 March 28th - 29th
Organizers: Jasper van der Velde, Elisabetta Chicca, Yoeri van de Burgt and Beatriz Noheda
Poster, Laura Munoz-Diaz, 025
Publication date: 23rd February 2022

Over the last decades, metal halide perovskites (MHP) solar cells have become popular due to their optoelectronic properties, achieving conversion efficiencies up to 25.5% [1]. The MHP semiconductors show mixed ionic-electronic conduction [2]. Paired with their electronic photoconductivity, remarkable ionic conductivity is developed thanks to vacancy displacements. This causes hysteresis in the J−V curve [3], which is highly related to memory effects that can be exploited in new non-optoelectronic applications, such as memory storage and brain-like computation.

Complex artificial visual systems used to sense, process and storage images generating  large amounts of redundant data [4]. Optoelectronic resistive random memory devices (ORRAMS) are highly demanded, multifunctional future candidates for efficient artificial vision systems [5]. MHP based memristors can act as simple as two-terminal ORRAM synaptic devices, performing the functions of first-stage image processing. Despite several studies have developed deeper knowledge about chemical mechanism enabling to emulate synaptic functions [6], some challenges are still remaining. While conductance states of MHP devices have been proven to be time and voltage modulated [7], their light-tunable synaptic characteristics have not received such attention [4].

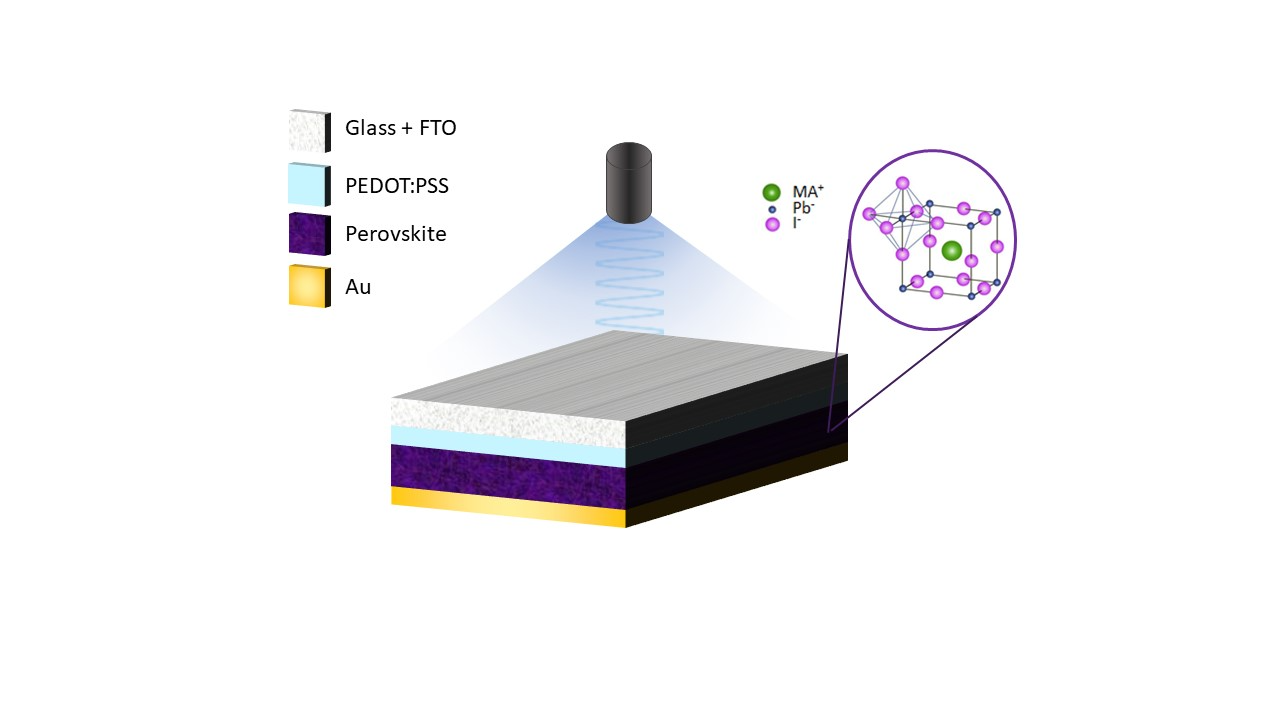

Here, we draw on small light perturbation techniques, such as squared-pulse application or Intensity Modulated Photocurrent Intensity (IMPS), widely used in the characterization of MHP solar cells, to achieve a deeper insight of MHP memristors mechanisms governing their performance under low illumination intensities. Exploring light-potentiation and dependent frequency response will allow to mimic neural spiking networks and memory functions of the human brain.
