Publication date: 23rd February 2022

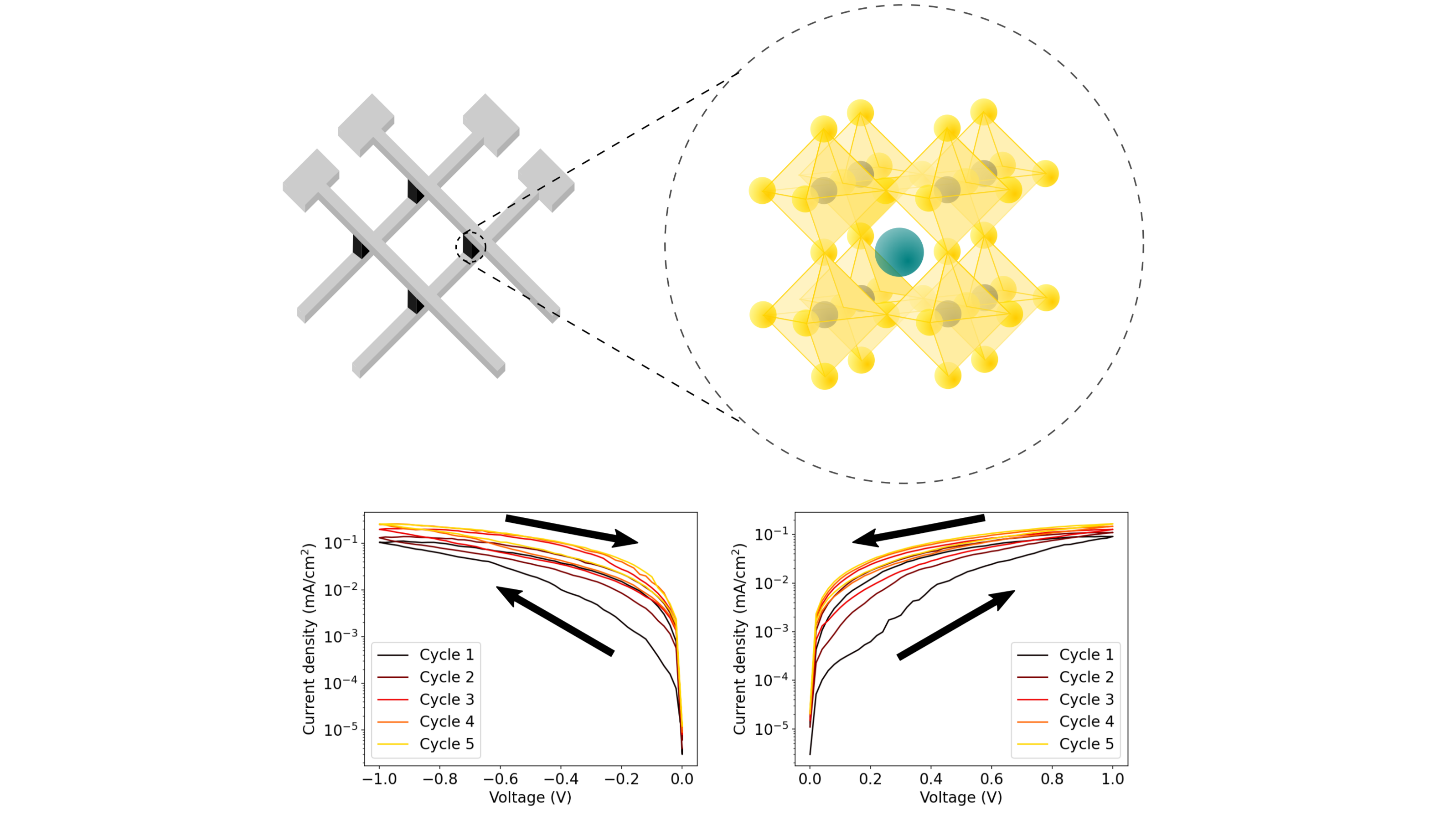

Lead halide perovskites are highly promising materials for a wide range of optoelectronic applications, such as photovoltaics and LEDs. However, perovskite optoelectronic devices typically display large hysteresis effects under mild operating conditions, which is unwanted for these applications. At the same time these large hysteresis effects under mild conditions are highly desirable for artificial synapses, which exploit hysteresis to change the conductivity of the device. Artificial synapses based on lead halide have been demonstrated before[1]. Low energy consumptions were possible for these synapses made of methylammonium lead iodide (MAPbI3), due to the diode behavior of the synapse and the low voltages at which hysteresis occurred. We estimate that downscaling devices based on methylammonium lead iodide (MAPbI3) to device areas of 1 µm2 could already bring the energy consumption of switching events of the synapse to values as low as 1 to 100 fJ, the same range as that of biological synapses. However, the poor chemical stability of MAPbI3, and lead halide perovskites in general, makes downscaling of the device with standard lithography techniques difficult. Here, we investigate a photolithography procedure that is compatible with MAPbI3 to prepare MAPbI3-based artificial synapses with device areas between 1 and 104 µm2. We show that downscaling of the synapse with this method is indeed a viable strategy to reduce the energy consumption of the device. The goal is to further develop lead halide perovskite artificial synapses with the same energy consumption as biological synapses for ultra-low power physical computing systems.
This project has received funding from the European Research Council (ERC) under the European Union’s Horizon 2020 research and innovation programme (Grant agreement No. 947221).
