Synapse Potentiation and Depression by Elementary Electric Circuitry
Roberto Esteve a, So-Yeon Kim a, Juan Bisquert a
a INSTITUTO DE TECNOLOGIA QUIMICA (UPV-CSIC), València, Spain, Avinguda dels Tarongers, València, Spain
Materials for Sustainable Development Conference (MATSUS)
Proceedings of MATSUS Spring 2025 Conference (MATSUSSpring25)
Advancements in Memristor Technology: From Materials to Devices and Applications - #MemTech
Sevilla, Spain, 2025 March 3rd - 7th
Organizers: Valeria Bragaglia, Wooseok Choi and Juan Bautista Roldan
Poster, Roberto Esteve, 606
Publication date: 16th December 2024

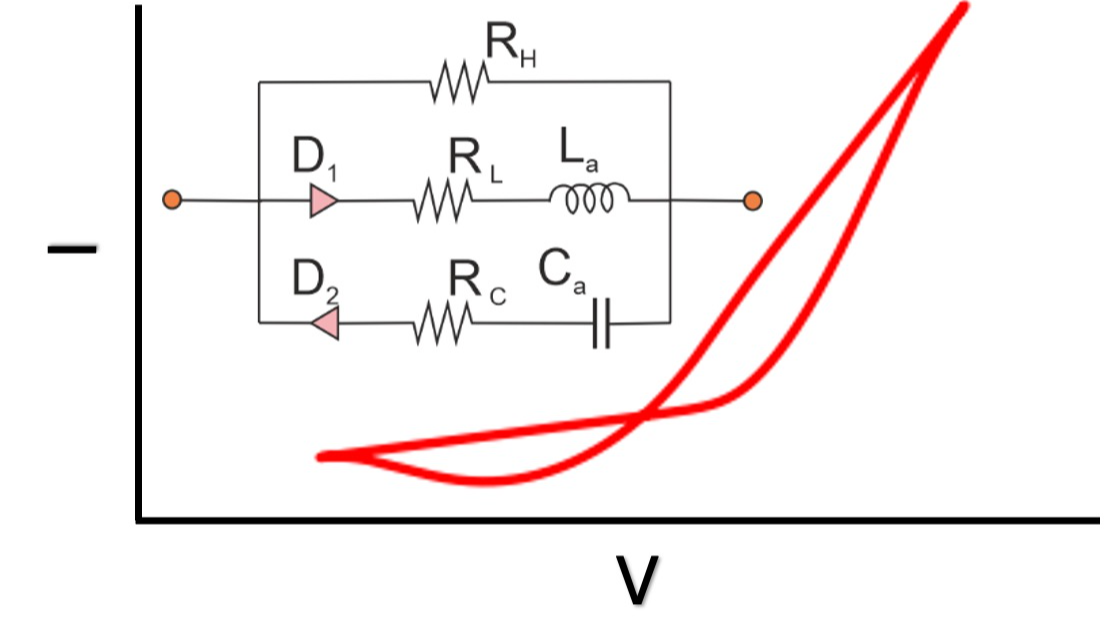

Memristors constitute the cornerstone of the current research in the pursuit of neuromorphic computing. The main feature of a memristor is the possibility of modifying its conducting state thanks to a physical property that can be tunned by external stimuli. Notable memristic systems include: self-organized nanowire networks [1], membranes with multiple asymmetric nanopores [2] as well as perovskites [3] and oxide materials such as VO2 [4]. Can memristors be emulated by electric circuits with simple elements: resistance, inductance, capacitance? [5]. Currently, electric circuits utilized for emulating the properties of memristors are quite complicated [6]. Here, we analyse the role that each electric element plays for providing neuromorphic behaviours such as I-V hysteresis loops, potentiation and depression. For instance, while an inductive element produces I-V characteristic counter-clockwise loops, a capacitance element yields clockwise loops. However, neither of them passes through the zero I-V point. Therefore, it is necessary to use other components that provide a rectifying response such as a diode. Based on this analysis, a simple electric circuit that reproduce typical memristic behaviours is proposed and studied experimentally.

We thank the MENEU project (20250002) funded by the Universitat Politècnica de València.
