Mechanosynthesis of lead-free halide perovskites for supercapacitor applications
Azhar Ali Ayaz PIRZADO a, Taylan KARAKOC a, Sergey PRONKIN a, Sylvie BEGIN-COLIN a
a Institut de Chimie et Procédés pour l’Energie, l’Environnement et la Santé (ICPEES), UMR-7515, CNRS-Université de Strasbourg, Strasbourg 67087, France.
Materials for Sustainable Development Conference (MATSUS)
Proceedings of MATSUS Spring 2025 Conference (MATSUSSpring25)
Sustainability of halide perovskites - #SUPER
Sevilla, Spain, 2025 March 3rd - 7th
Organizers: Francesca Brunetti, Iris Visoly-Fisher and Lukas Wagner
Oral, Azhar Ali Ayaz PIRZADO, presentation 213
DOI: https://doi.org/10.29363/nanoge.matsusspring.2025.213
Publication date: 16th December 2024

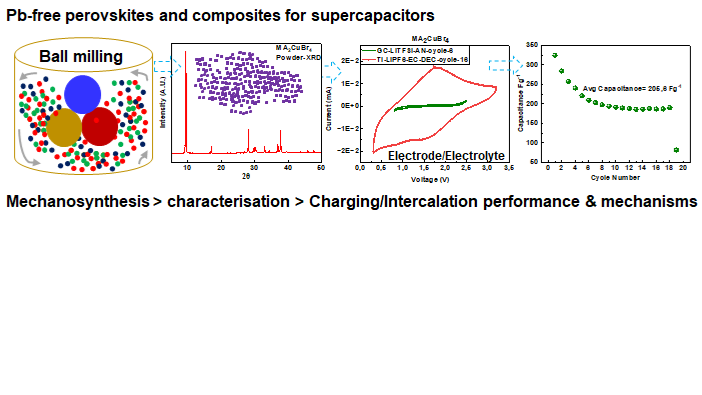

Halide perovskites have gained a lot of attention in energy storage applications due to their high electrical and ionic conductivity, large diffusion coefficients and ease of structural dimensions. However, the use of toxic solvents and lead in the synthesis processes has limited their potential for commercial development [1]. To overcome these challenges, we developed the mechanosynthesis of lead-free 2D and 3D perovskite powders for supercapacitor applications. Using this scalable and solvent-free ball-milling technique, we have synthesized methylammonium copper bromide (MA2CuBr4), cesium bismuth chloride (Cs2Bi3Cl9) perovskites, and MA2CuBr4-graphite composite powders which were composed of aggregates of nanograins. After mechanosynthesis, MA2CuBr4 powders were washed and centrifuged in methyl acetate several times to obtain the orthorhombic crystal structure (with Pbca space group) and confirmed by the x-ray diffraction analysis [2]. MA2CuBr4 was first studied as an electrode material for supercapacitor and we have tested two electrolytes/working electrode systems. In the optimized LiPF6 electrolyte/Ti electrode system, MA2CuBr4 showed stable and high average specific capacitance of 205 Fards/gram (Fg-1) for 20 cycles as a working electrode thanks to the 2D layered morphology suitable for lithium intercalation. To the best of our knowledge, the performance of MA2CuBr4 perovskite was not studied for supercapacitor electrode application but is comparable to the recently reported lead-free bismuth-based perovskite (Cs3Bi2I9) supercapacitor with a specific capacitance of ~242 Fg-1 [3]. A maximum current of up to 20 miliamperes (mA) was observed at voltage of 1.72 V during the large operating voltage range of 0.3 V to 3.2 V. Witnessing the high performance of MA2CuBr4 as a supercapacitor, perovskite-graphite composites were synthesized using one-pot and two-pot schemes. In graphite-based composite powders, the graphite few layers were observed to distribute homogeneously within powders, indicating strong graphite-perovskite interaction. The effect of graphite addition was also studied for improving the electrochemical performance. These results demonstrated at first the great potential of mechanosynthesis, which is a green and easy-scalable powder synthesis technique to develop electrode materials for supercapacitors. This was confirmed by further experiments with another mechanosynthesized perovskite, Cs2Bi3Cl9. The cyclovoltametric and charge/discharge experiments with Cs2Bi3Cl9, MA2CuBr4, and MA2CuBr4-graphite composite have allowed for better evidencing the interest of such layered materials. Thus, mechanosynthesis shows a promise for creating eco-friendly, high-efficiency lead-free hybrid perovskite devices for sustainable energy storage applications.

Keywords : lead-free perovskites, green chemistry, solvent-free mechanosynthesis, electrode materials, supercapacitors, energy storage



This work was supported by Fondation Jean- Marie Lehn by grant number: SBE-003-23

For the project entitled:

Mechanosynthesis and wafers-shaping of 2D and mixed 2D/3D hybrid perovskites for designing new X-Ray detector with improved stability and performance
