A Templating Approach to Controlling the Growth of Coevaporated Halide Perovskites
Siyu Yan a, Nakita Noel a, Michael Johnston a, Jay Patel b, Jae Eun Lee a, Laura Herz a c
a Department of Physics, University of Oxford, Clarendon Laboratory, Parks Road, Oxford, OX1 3PU, UK
b Department of Physics, King's College London
c Institute for Advanced Study, Technical University of Munich, Lichtenbergstrasse 2a, D-85748 Garching, Germany
Materials for Sustainable Development Conference (MATSUS)
Proceedings of MATSUS Spring 2025 Conference (MATSUSSpring25)
Future of Metal Halide Perovskites: Fundamental Approaches and Technological Challenges - #PerFut25
Sevilla, Spain, 2025 March 3rd - 7th
Organizers: Annalisa Bruno and Pablo P. Boix
Oral, Siyu Yan, presentation 074
DOI: https://doi.org/10.29363/nanoge.matsusspring.2025.074
Publication date: 16th December 2024

Metal halide perovskite semiconductors have shown significant potential for use in photovoltaic (PV) devices. While fabrication of perovskite thin-films can be achieved through a variety of different techniques, thermal vapour deposition is particularly promising, allowing for high-throughput fabrication and large-scale production[1]. However, the ability to control the nucleation and growth of these materials, particularly at the charge-transport layer/perovskite interface, is critical to unlocking the full potential of vapour-deposited perovskite PV[2].

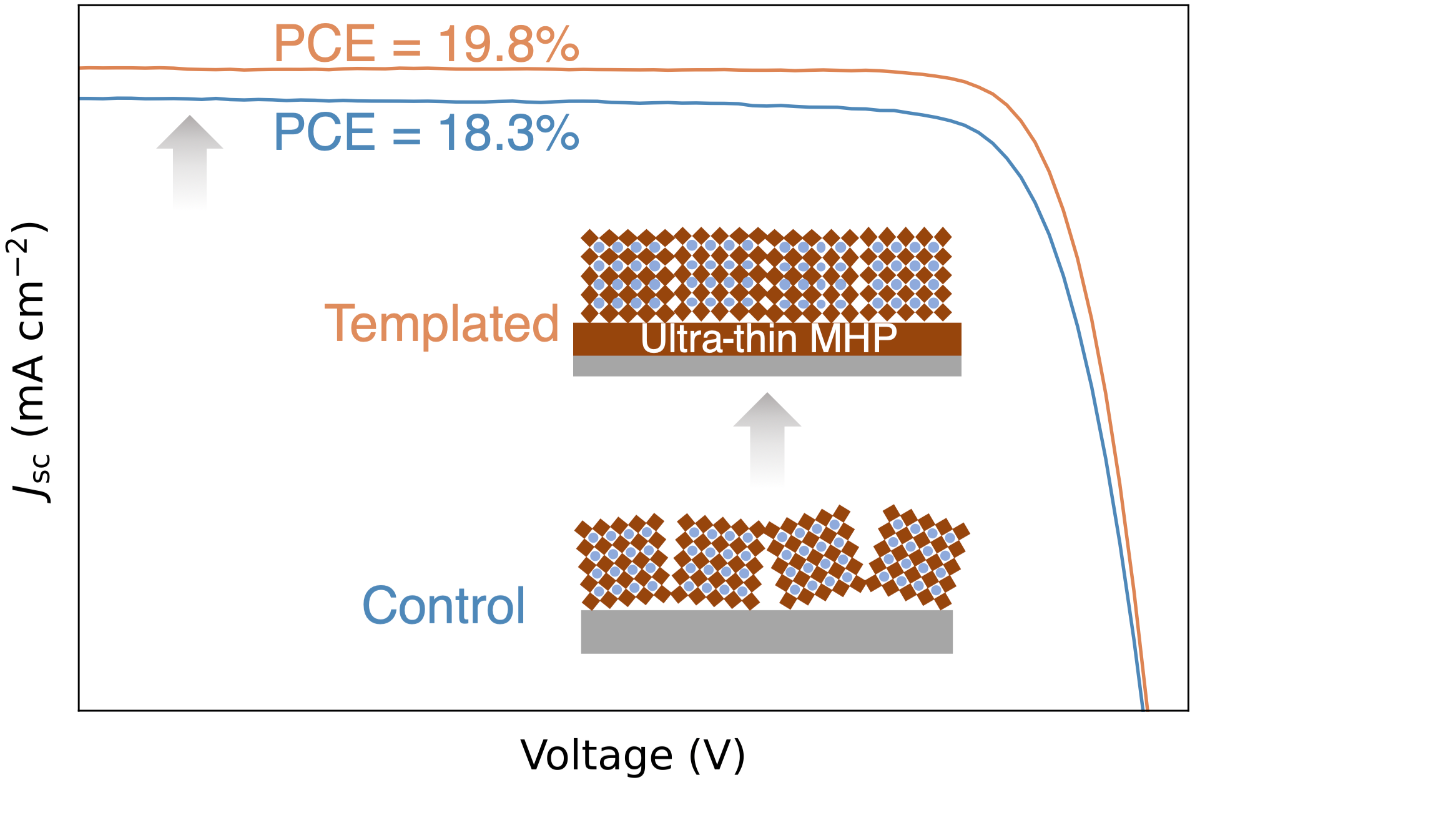

In this study, we explore the use of a templating layer to control the growth of co-evaporated perovskite films, and find that such templating reproducibly leads to highly oriented films with identical morphology, crystal structure, and optoelectronic properties, independent of the specific substrate on which the perovskite was deposited[3]. When incorporated into solar cells, devices based on this approach showed reproducible improvements, yielding vapour-deposited FA0.9Cs0.1PbI3-xClx solar cells with steady-state solar-to-electrical power conversion efficiencies over 19.8%. Our findings provide a straightforward and reproducible method of controlling the charge-transport layer/perovskite interface in vapour-deposited perovskite solar cells, further clearing the path toward large-scale fabrication of efficient perovskite optoelectronic devices.
