Proceedings of MATSUS Fall 2024 Conference (MATSUSFall24)
DOI: https://doi.org/10.29363/nanoge.matsusfall.2024.243
Publication date: 28th August 2024
Perovskite solar cells (PSCs) have achieved impressive power conversion efficiencies (PCE) of up to 26.1%,[1] however their commercialization is hindered by significant stability challenges, particularly in the presence of oxygen/moisture, and under operating conditions such as voltage bias, light exposure, and temperature fluctuations. These issues are often associated with migration of ions, which can lead to a degradation of optoelectronic properties, and, in turn can adversely affect both the performance and long-term stability of PSCs. Inherent defects and grain boundaries are the main ion migration pathways within the perovskite layer. Notably, unreacted lead iodide (PbI2) at these sites, including surface of perovskite grains, and the interface between the perovskite layer and the charge transport layer, is a major cause of intrinsic instability under illumination. PbI2 can break down into iodine and metallic lead, acting as recombination centers, further promoting ion migration, and accelerating degradation.[2] In stark contrast for the operation of PSCs, it has been shown that enhancing device performance often involves adding a small excess of PbI2 to the precursor solution.
The conflicting observations that PbI2 can both enhance performance but also degrade stability suggests a need for research efforts directed toward simultaneously mitigating crystallization of residual PbI2 while improving device stability, ensuring that efficiency gains do not compromise the long-term reliability of perovskite solar cells.

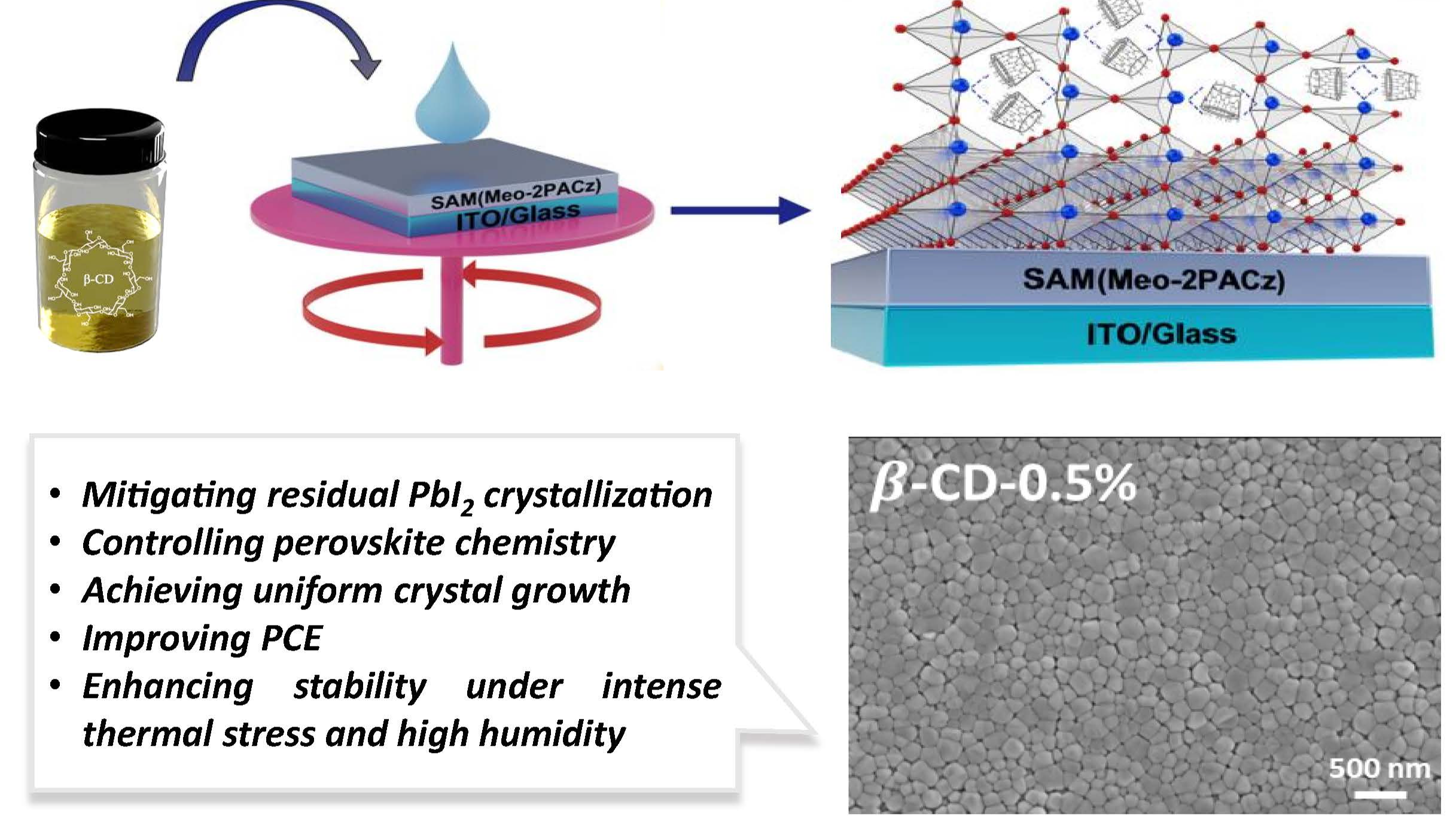

This presentation addresses these challenges through supramolecular complex engineering by introducing beta-cyclodextrin (β-CD) into a triple cation perovskite layers to effectively prevent the crystallization of residual PbI2. This approach results in uniform crystal growth and the passivation of undercoordinated lead cation defects, as confirmed by XRD and SEM analyses. The use of β-CD leads to a PSC with an improved PCE of 21.36%, surpassing the control (19.4%), and enhanced stability against aggressive thermal stress and high humidity (85% RH), likely attributed to defect passivation as evidenced by PL, SCLC and the dependence of VOC on the incident light intensity studies. Notably, in comparison to the β-CD-free control, the β-CD-treated sample exhibited minimal optical bandgap shifts of 3 meV after 1170 hours of moisture exposure. In addition, the devices treated with a 0.5% of β-CD showcased improved stability, maintaining over 73% of their initial PCE even after undergoing 320 hours of testing at 50-60℃. XPS and NMR observations reveal that β-CD effectively anchors uncoordinated Pb2+ ions, preventing the formation of metallic Pb and enhancing film stability under environmental stress. Furthermore, this method not only passivates unreacted PbI2 but also provides valuable insights into the role of β-CD in PSCs. Additional tests with Maltose as a non-cyclic control were conducted and confirm the superior ability of β-CD to enhance perovskite film stability under harsh conditions.[3] The formation of a supramolecular system between β-CD and perovskite holds promise as a strategy to control perovskite precursor chemistry, material structure, and subsequent device performance and stability.
The authors thank the EPFL and the research agreement between EPFL and the Korea Electric Power Corporation (KEPCO) for financial support of this work. Additionally, the authors appreciate the contributions of Dr. Laura Piveteau and Dr. Aurélien Bornet from EPFL for their assistance with NMR spectroscopy, and acknowledge Dr. Mounir Mensi for conducting XPS measurements.
