Monolithic Triple Junction Perovskite Photodetector Arrays for Color Filter-free Image Sensors
Sergey Tsarev a b, Daria Proniakova a, Erfu Wu a c, Gebhard Matt a b, Sakhatskyi Kostiantyn a b, Lorenzo Ferraresi a c, Radha Kothandaraman b, Fu Fan b, Ivan Shorubalko c, Sergii Yakunin a b, Maksym Kovalenko a b
a Laboratory of Inorganic Chemistry, Department of Chemistry and Applied Biosciences, ETH Zürich, CH-8093 Zürich, Switzerland
b Laboratory for Thin Films and Photovoltaics, Empa – Swiss Federal Laboratories for Materials Science and Technology, CH-8600 Dübendorf, Switzerland
c Transport at Nanoscale Interfaces Laboratory, Empa – Swiss Federal Laboratories for Materials Science and Technology, CH-8600 Dübendorf, Switzerland
Materials for Sustainable Development Conference (MATSUS)
Proceedings of MATSUS Fall 2024 Conference (MATSUSFall24)
#PeroMAT- Halide perovskite and perovskite- inspired materials: synthesis and applications
Lausanne, Switzerland, 2024 November 12th - 15th
Organizers: Raquel Galian, Lakshminarayana Polavarapu and Paola Vivo
Oral, Sergey Tsarev, presentation 161
DOI: https://doi.org/10.29363/nanoge.matsusfall.2024.161
Publication date: 28th August 2024

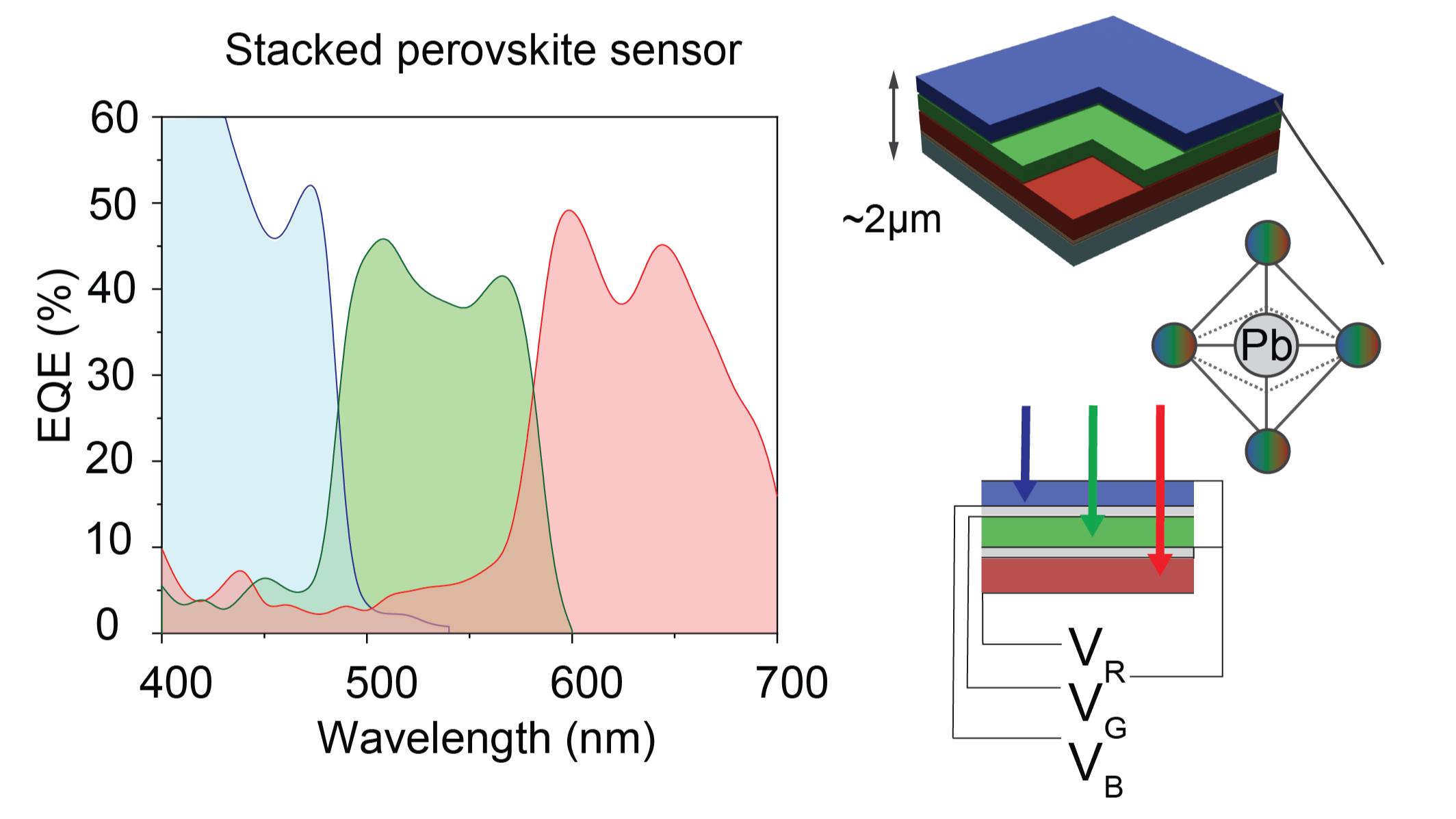

Modern color image sensors and cameras face challenges in improving sensitivity and color fidelity due to the inherent inefficiencies in light utilization. A major factor contributing to these inefficiencies is the use of passive optical filters, which absorb a significant portion of incoming light, thereby diminishing the sensors' quantum efficiency. We present an innovative architecture for color detector arrays, leveraging multilayer monolithically stacked lead halide perovskite thin-film photodetectors. By utilizing the tunable bandgap of perovskites, we selectively absorb the red, green, and blue regions of the visible light spectrum, eliminating the need for traditional color filters. We achieved external quantum efficiencies of 50%, 47%, and 53% for the red, green, and blue channels and color accuracy of 4.5ΔELab, outperforming state-of-the-art color-filter array and Foveon-type photosensors while avoiding demosaicing artifacts. Our study lays the groundwork for the next generation of image sensors, employing conceptually novel architectures with enhanced light utilization.

The work was financially supported by ETH Zürich through the ETH+ Project SynMatLab: Laboratory for Multiscale Materials Synthesis.
