Bifacial Perovskite Solar Cells with NiOx/Ag/NiOx (NAN) Electrodes
Ugur Deneb Menda a, Salih Alper Akalin b, Tiago Mateus a, Edgar Coimbra a, Daniel Camilo a, Hugo Aguas a, Manuel Mendes a, Rodrigo Martins a, Elvira Fortunato a
a Universidade NOVA de Lisboa, CENIMAT-I3N, Faculdade de Ciências e Tecnologia, Portugal
b Dokuz Eylul University, Turkey
Materials for Sustainable Development Conference (MATSUS)
Proceedings of MATSUS Fall 2024 Conference (MATSUSFall24)
#PeroMAT- Halide perovskite and perovskite- inspired materials: synthesis and applications
Lausanne, Switzerland, 2024 November 12th - 15th
Organizers: Raquel Galian, Lakshminarayana Polavarapu and Paola Vivo
Oral, Ugur Deneb Menda, presentation 126
DOI: https://doi.org/10.29363/nanoge.matsusfall.2024.126
Publication date: 28th August 2024

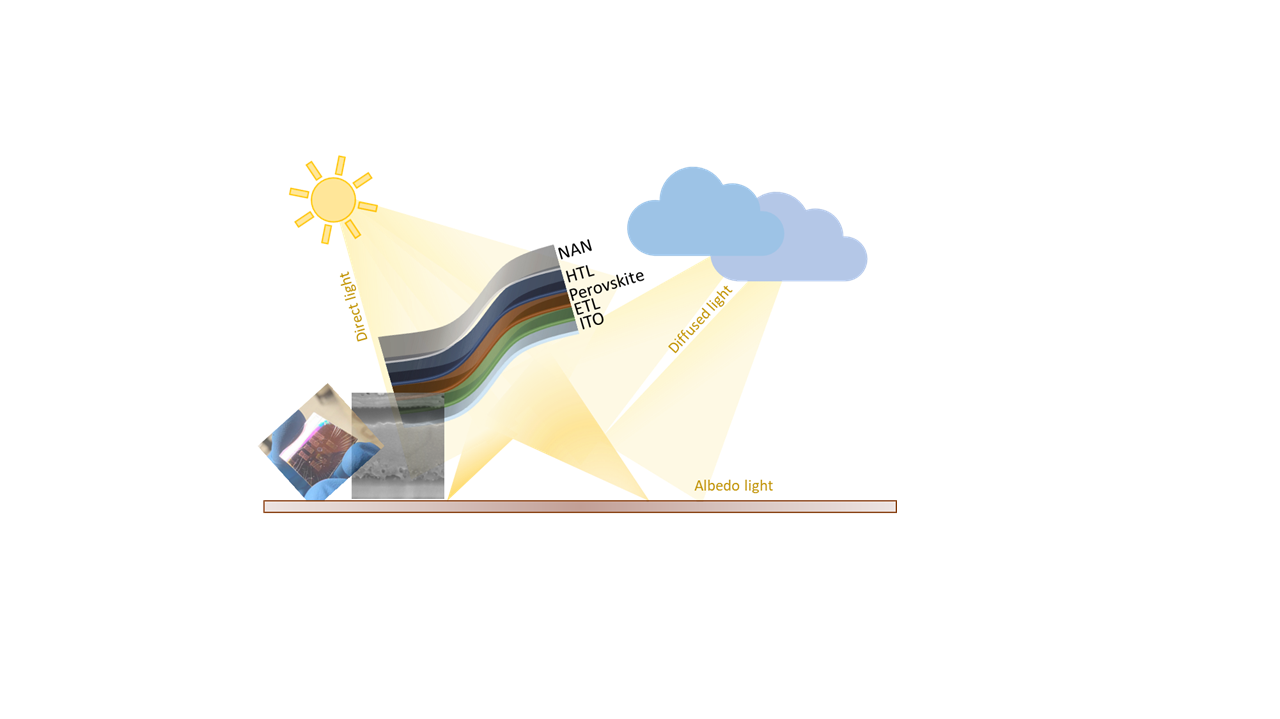

Bifaciality is a salient sub-field for perovskite solar cells (PSCs), both due to reaching higher efficiency values for single-junction devices and applying them to tandem devices with other technologies or PSCs [1]. For this purpose, transparent electrodes (TEs) have been investigated, including TCOs, metal nanowires, ultrathin films, and 2D materials such as graphene [2]. TEs with noteworthy bendability properties are also riveting to be used in lightweight-flexible devices for novel areas like portable devices or aerospace applications [3]. In this context, we present bifacial perovskite solar cells, suggesting alternative transparent electrodes composed of three ultrathin layers, called OMOs (oxide-metal-oxide). The main material of the study is nickel oxide/silver/nickel oxide (NAN) [4] layers where a silver layer is sandwiched between NiO films, with thicknesses of 35 and 8, for NiO and Ag layers respectively. The triple layers are fabricated with sequential e-beam deposition, consisting of only one evacuation process. A comprehensive characterization of NAN layers providing the transmittance and conductivity properties and their performance when applied to perovskite solar cells, with remarkable Voc of 1.11 V using an active layer bandgap of 1.6 eV, will be presented in which the charge transport and absorber layers of the devices are fabricated via solution-based methods on rigid and flexible substrates.

This work was funded by FCT (Fundaçao para a Ciencia e Tecnologia, I.P.) under the projects Paperovskite (2022.02954.PTDC), Flexsolar (PTDC/CTM-REF/1008/2020) and Spaceflex (2022.01610.PTDC ).
