Energy-efficient tandem Nitrate-to-Ammonia electrochemical reduction
Marcelo Chavez a, Sebastian Murcia a, Joan Ramon Morante a
a Catalonia Institute for Energy Research (IREC), Sant Adrià de Besos, 08930, Barcelona, Spain.
Materials for Sustainable Development Conference (MATSUS)
Proceedings of MATSUS Spring 2024 Conference (MATSUS24)
#MatInter - Materials and Interfaces for emerging electrocatalytic reactions
Barcelona, Spain, 2024 March 4th - 8th
Organizers: Marta Costa Figueiredo and María Escudero-Escribano
Oral, Marcelo Chavez, presentation 325
DOI: https://doi.org/10.29363/nanoge.matsus.2024.325
Publication date: 18th December 2023

The global transition to sustainable energy sources and the evolution toward a hydrogen-based economy demand energy formats that enable prolonged storage and efficient transportation from remote, renewable energy-rich locations. Liquefied energy forms, notably ammonia (NH3), are gaining favor as viable alternatives, serving not only as a prominent energy carrier but also playing a crucial role as feedstock for the chemical and fertilizer industries.

In this context, highly efficient nitrate electroreduction (NO3-RR) emerges as a pivotal process for sustainable NH3 production, promising to overcome limitations associated with the current Haber-Bosch process. However, existing electrocatalysts face significant drawbacks in productivity yield, energy efficiency, and stability, especially under industrial conditions.

The NO3-RR process involves an eight-electron transfer assisted by protons, generating multiple intermediates that can diminish overall efficiency, particularly when NH3 is the desired end product. Several studies recognize the reduction of NO3- to nitrite (NO2-) as the rate-determining step (RDE), with subsequent chemical and electrochemical steps occurring after the formation of NO2-. Consequently, at low overpotentials with negligible competition from the Hydrogen Evolution Reaction (HER), the deoxygenation of adsorbed NO2- determines the overall NO3-RR, accentuating the importance of targeting this step to maximize NH3 generation. The accumulation of NO2- intermediate byproducts in the electrolyte necessitates the simultaneous acceleration of NO3-RR and NO2-RR to NH3, presenting a challenging yet promising approach for efficient ammonia generation.

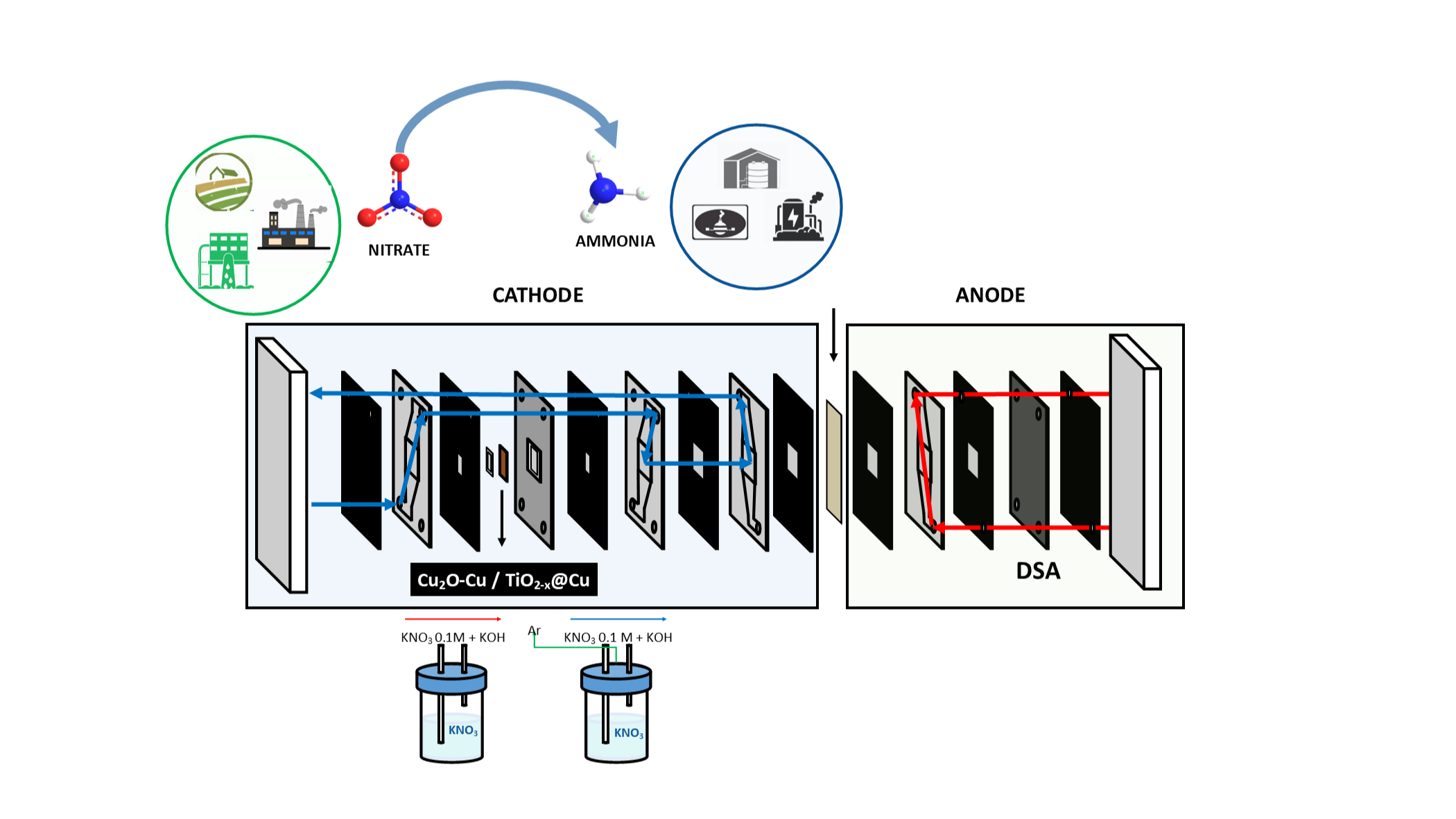

This study introduces a tandem NO3-RR process, involving sequential electrochemical processes converting NO3- to NO2- and then NO2- to NH3. An employed composite electrocatalyst of Titanium Dioxide with oxygen vacancies (TiO2-x) deposited on a Copper oxide (I)-copper (Cu2O-Cu) surface, coupled with an optimized flow-cell configuration, produces compelling results toward NH3: a Faradaic Efficiency (FENH3) of 97%, selectivity (SENH3) of 80%, and a productivity yield of 0.45 mmol h-1 cm-2. The cooperative synergy of intrinsic properties of the electrode composition and cell configuration enables high Half-Cell (EENH3) and full-cell (EECELL) energy efficiencies (52% and 43%, respectively).

In summary, our tandem NO3-RR process represents a significant advancement in addressing the challenges of sustainable ammonia production, providing a promising and efficient approach for environmentally friendly energy applications.

IREC also acknowledges support from CERES project (PID2020- 116093RB-C42). M.E.C. acknowledges the Formacion Profesional de Investigadores Program (PRE2018-083575).
