From InAs Cores to Thick Shell InAs/ZnSe Core/shells: Boosting Near-Infrared LED Performance
Hossein Roshan a, Dongxu Zhu b, Davide Piccinotti a, Jinfei Dai b c, Manuela De Franco a d, Matteo Barelli a, Mirko Prato e, Luca de Trizio b, Liberato Manna b, Francesco Di Stasio a
a Photonic Nanomaterials, Istituto Italiano di Tecnologia, 16163, Genova, Italy
b Nanochemistry, Istituto Italiano di Tecnologia, Via Morego 30, 16163 Genova, Italy
c Key Laboratory for Physical Electronics and Devices of the Ministry of Education & Shaanxi Key Lab of Information Photonic Technique, School of Electronic Science and Engineering, Xi'an Jiaotong University, Xi'an, 710049, China
d Dipartimento di Chimica e Chimica Industriale, Università degli Studi di Genova, Via Dodecaneso 31, 16146 Genova, Italy
e Materials Characterization Facility, Istituto Italiano di Tecnologia, Via Morego 30, 16163 Genova, Italy
Materials for Sustainable Development Conference (MATSUS)
Proceedings of MATSUS Spring 2024 Conference (MATSUS24)
#Chiral24 - Chiral Nanomaterials: Synthesis, Structure, and Properties
Barcelona, Spain, 2024 March 4th - 8th
Organizers: Dmitry Baranov and Sandrine Ithurria
Poster, Hossein Roshan, 110
Publication date: 18th December 2023

In the quest for heavy-metal-free colloidal quantum dots (QDs) for optoelectronic devices, III-V QDs demonstrate promising characteristics. Specifically, InAs QDs exhibit commendable absorption and emission properties in the near-infrared spectral range, . Traditional methods for obtaining InAs QDs involve the use of highly reactive, pyrophoricand expensive chemicals, such as tris-trimethylsilyl (TMS) arsine and TMS phosphine, which are not conducive to scalable material production. These InAs QDs have been utilized in light-emitting diodes (LEDs) with external quantum efficiencies (EQEs) of 4.6% and 13.3%, paired with InP and GaP shells, respectively. In our approach, we developed a synthetic method for InAs QDs and their core-shell structures using alternative, cost-effective, and less hazardous arsenic precursors, such as tris(dimethylamino)-arsine (amino-As). In a previous publication, we applied this innovative methodology, incorporating (amino-As), alane N,N-dimethylethylamine as a reducing agent, and ZnCl2 as an additive, for the synthesis of InAs/ZnSe core/shell QDs, achieving a shell thickness of approximately 1.5 monolayers (ML). This resulted in a peak emission wavelength at 860 nm in solution and a substantial photoluminescence quantum yield (PLQY) of around 42% [1]. Using these QDs, we developed an LED with a turn-on voltage of 2.7V, EQE of 5.5%, and maximum radiance of 0.2 Wsr-1cm-2 [2].

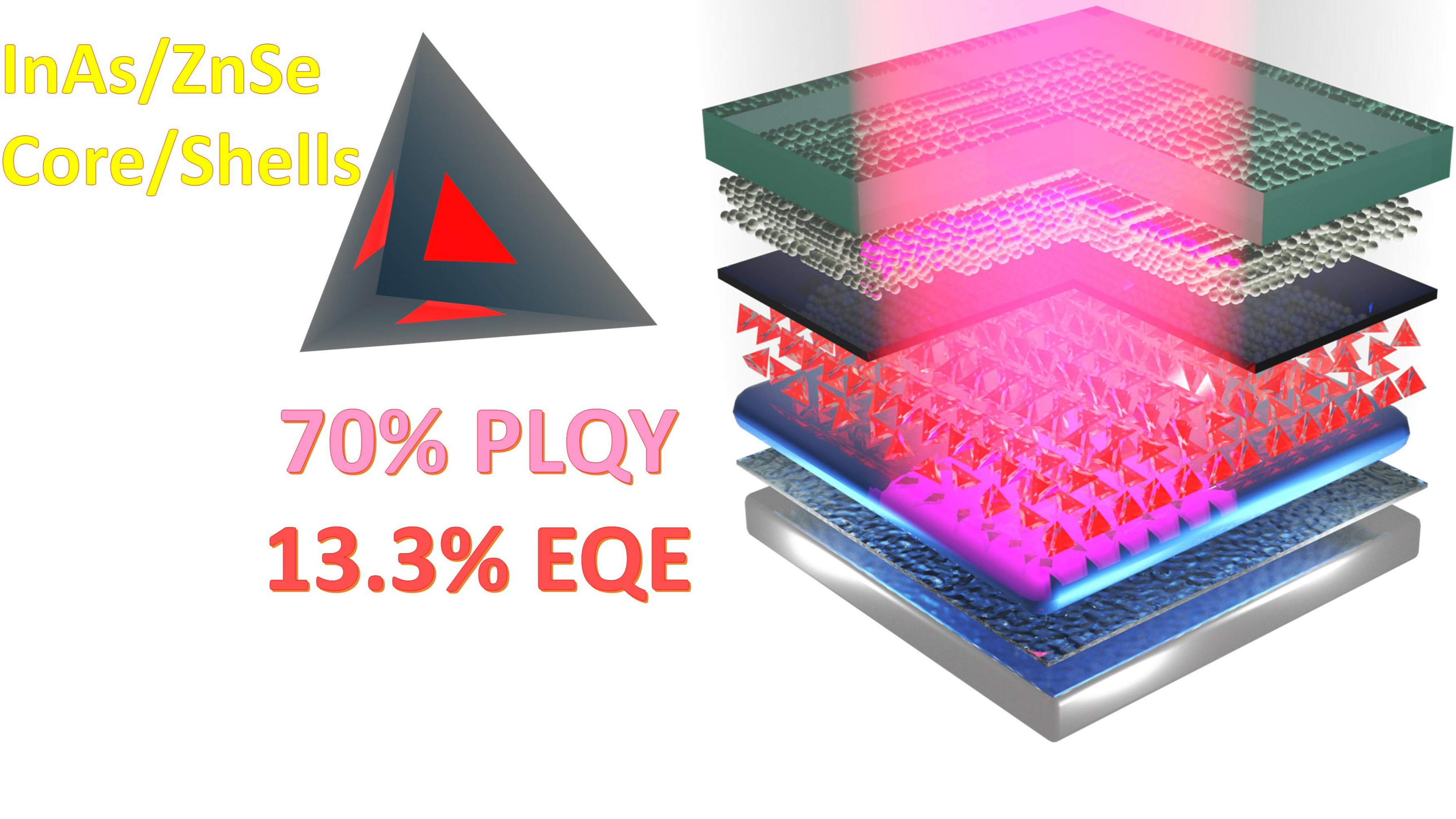

Building on these findings, we increased the ZnSe shell thickness to 7 ML, leading to a notable enhancement of the PLQY, now reaching approximately 70% at a peak emission wavelength of 906 nm in solution [3]. We employed such QDs for the fabrication of LEDs with an inverted architecture. Here, we present the optimized LED architecture, which consist of ZnO as electron transport layer and Poly-TPD as hole transport layer. The results of thick shell InAs/ZnSe LED show a significant improvement in LED performance, including reduced turn-on voltage, increased maximum EQE, maximum radiance and dynamic range. Importantly, the best performing LED achieves an EQE of 13.3% and a radiance of 12 Wsr-1cm-2.
