Electrolyte engineering has been key to the advancement of aqueous lithium-ion batteries (ALIBs), for example, the introduction of water-in-salt/water-in-bisalt electrolytes (WiSEs/WiBEs) has made it possible to operate ALIBs at potentials far beyond the electrochemical stability window (ESW) of water[1,2]. WiSEs/WiBEs are, however, intrinsically based on high concentrations of salt(s) which often is expensive and fluorinated, and therefore defeats the aim of ALIBs being low-cost and sustainable. A strategy to circumvent this issue has been to add co-solvents and/or diluents to effectively decrease the overall salt concentration[3]. The clean and green ethos of ALIBs can be enhanced by using organic active materials (AMs) in the electrodes, resulting in a combination void of both flammable organic solvents and expensive transition metals. Yet, such AMs are often water soluble and therefore requires an electrolyte designed to mitigate dissolution to maximize the performance[4].

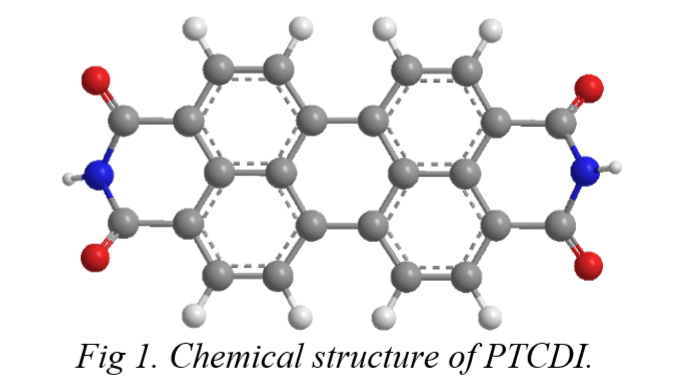

Herein, we for the first time implement the organic pigment perylene-3,4,9,10-tetra-carboxylic-di-imide (PTCDI) as an AM for ALIBs. We demonstrate that by using co-solvents such as urea we can mitigate its dissolution, leading to excellent LIB properties in terms of capacity, rate capability and cycling stability. Furthermore, urea reduces the high salt concentration typically needed for WiSEs, altogether creating a greener high-performant electrolyte that when/if used in tandem with organic AMs can pave the way for a truly sustainable next generation battery technology.
J.B. as a part of the DESTINY PhD programme acknowledges funding from the European Union's Horizon2020 research and innovation programme under the Marie Skłodowska-Curie Actions COFUND - Grant Agreement No: 945357. M.K. and P.J. would like to express their appreciation towards the Swedish Research Council for Sustainable Development (FORMAS) for enabling and supporting this work.
