Molten-State Synthesis of Transition-Metal Phosphides for Electrochemical Applications
Rotem Geva a b, Michael Volokh a, Yair Ein-Eli c d, Menny Shalom a
a Department of Chemistry and Ilse Katz Institute for Nanoscale Science and Technology, Ben-Gurion University of the Negev, Beer-Sheva, 8410501, Israel.
b Nuclear Research Center Negev, Beer-Sheva 84190, Israel
c Department of Material Science and Engineering, Technion– Israel Institute of Technology, Haifa, 3200003, Israel
d The Nancy and Stephen Grand Technion Energy Program, Technion – Israel Institute of Technology, Haifa, Israel
Materials for Sustainable Development Conference (MATSUS)
Proceedings of MATSUS23 & Sustainable Technology Forum València (STECH23) (MATSUS23)
#e-FuelSyn - Electrocatalysis for the Production of Fuels and Chemicals
VALÈNCIA, Spain, 2023 March 6th - 10th
Organizers: Carla Casadevall Serrano and Julio Lloret Fillol
Oral, Rotem Geva, presentation 013
DOI: https://doi.org/10.29363/nanoge.matsus.2023.013
Publication date: 22nd December 2022

Transition-metal phosphides are of high interest for electrochemical applications, owing to their chemical stability, composition and phase tunability, and economic potential.
In this talk, I will discuss our new route for metal phosphides synthesis, utilizing a direct reaction of transition-metal nitrate salts with triphenylphosphine (PPh3) in molten-state. This method was found straightforward, benign and scalable. We demonstrated this method for nanoscale transition-metal phosphides synthesis, as an attractive alternative to common solvothermal or gas-solid phosphidation synthetic methods, allowing tunable phase composition of the produced nanoparticles, along with significant simplification of procedures and equipment.

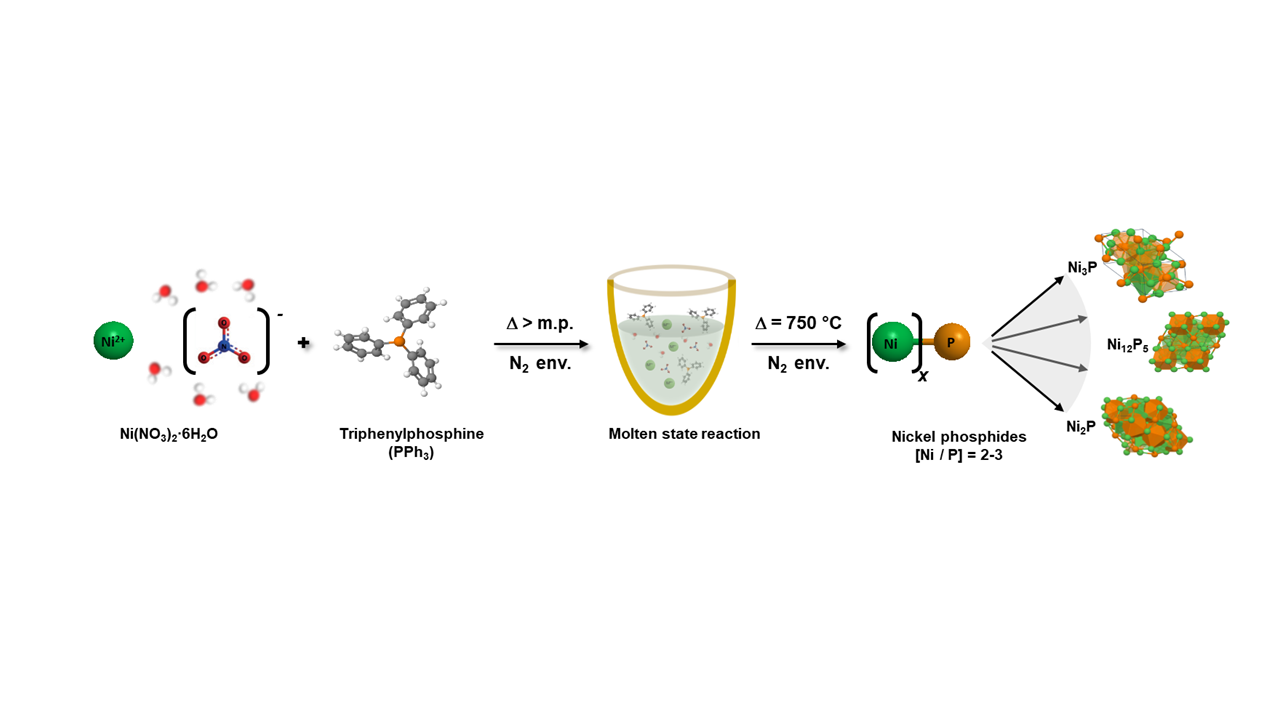

We initially demonstrated the new method for nickel-phosphides molten-state synthesis from Ni(NO3)26H2O and triphenylphosphine (PPh3)[1]. By combining analytical and computational methods, we elucidated the reaction mechanism, indicating that the reaction propagates dominantly through favored Ni-P bonding and consecutive cleavage of phenyl–P bonds of PPh3. Interestingly, we found both by DFT and XRD that an intermediate formation of metallic nickel nanoparticles, originating from ligand-to-metal charge transfer at the Ni-P bond, is essential for in-situ production of phosphides.

Furthermore, we exemplified the advantages of this simple and controllable method for the investigation of phase/composition-activity correlation of different Ni/P products for hydrogen evolution reaction (HER) and as anode-materials for Li-ion batteries.
We found a clear composition-activity trend for both applications, providing high performance which is comparable to nickel phosphides produced by other common methods. We found Ni3P products favorable as HER electrocatalysts, with 145 mV overpotential at 10 mA/cm2, and Ni2P was found favorable as LIBs anode materials, with 206 mAh g-1 capacity; both with high morphological and electrochemical stability.

This new simple synthetic path offers new possibilities for low-cost synthesis and design of other transition-metal based materials. I will present and discuss our latest results of an improved and generalized synthesis method based on the above detailed molten-state method, allowing the production of a variety of single and multi-component transition-metal phosphides for electrochemical applications.

The authors thank Dr Natalya Froumin and Adi Azoulay for materials characterization and Dr Vladimir Ezersky for fruitful discussion in electron microscopy. This work was financially supported by the Planning & Budgeting Committee/Israel Council for Higher Education (CHE) and Fuel Choice Initiative (Prime Minister Office of Israel), within the framework of “Israel National Research Center for Electrochemical Propulsion” (INREP), and the Minerva Stiftung – Minerva centers and school, No. 117873.
