Realizing Efficient and Reproducible Lead-free Perovskite Solar Cells with Purified Precursor Materials and Modified Solution Process

Jiewei Liu^a, Masashi Ozaki^a, Shinya Yakumaru^a, Taketo Handa^a, Ryosuke Nishikubo^b, Yoshihiko Kanemitsu^a, Akinori Saeki^b, Yasujiro Murata^a, Richard Murdey^a, Atsushi Wakamiya^a

^aKyoto University, Japan, Goryo-Ohara, Nishikyo-ku, Kyoto 615-8245, Japan

^bOsaka University, Japan, FRC, 2-1Yamada-oka,, Suita, 565, Japan

Asia-Pacific International Conference on Perovskite, Organic Photovoltaics and Optoelectronics
Proceedings of International Conference on Perovskite and Organic Photovoltaics and Optoelectronics (IPEROP19)

Kyōto-shi, Japan, 2019 January 27th - 29th

Organizers: Hideo Ohkita, Atsushi Wakamiya and Mohammad Nazeeruddin

Oral, Jiewei Liu, presentation 042
DOI: https://doi.org/10.29363/nanoge.iperop.2019.042
Publication date: 23rd October 2018

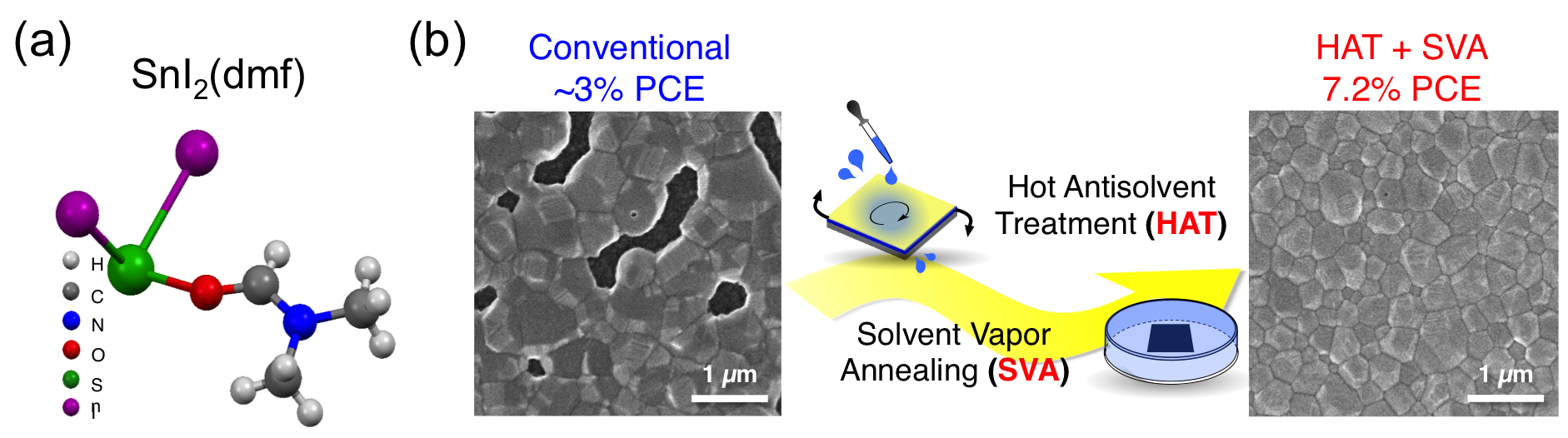

Organic-inorganic hybrid halide perovskites are promising photovoltaic (PV) materials with power conversion efficiencies (PCE) exceeding 23%. Although the toxic lead-based perovskite materials used in the leading perovskite solar cells (PSCs) are a significant impediment to commercialization, obtaining comparable performance using more environmentally friendly metals in place of lead has proven challenging. We are looking at Sn as a replacement for Pb, addressing key issues potentially holding back performance such as reagent purity and film morphology. The higher reactivity of SnI₂ compared to PbI₂ places additional importance on the purity of the reagents, and in the present work our perovskite films were fabricated from tin perovskite precursor materials such as solvent-coordinated tin halide complexes e.g. [SnI₂(dmf)] (Figure 1a)[1] which we confirmed to have significantly higher purity than commercially available SnI₂. The growth of smooth, high coverage perovskite films with high crystallinity is also important for high efficiency PSCs and we confirm that Sn-based perovskite films require modified fabrication methods compared to their lead analogs. We have developed two simple methods to improve tin halide perovskite film quality.[2] First, a hot antisolvent treatment (HAT) was found to increase the film coverage and prevent electric shunting in the photovoltaic device. Second, a solvent vapor annealing (SVA) step was noted to increase the average crystallite size. Both the morphology and the electrical properties of the perovskite films are improved as a result of the combined treatments, facilitating the fabrication of Sn-based perovskite solar cell devices with power conversion efficiencies of over 7% (Figure 1b).

References:

[1] Ozaki, M.; Katsuki, Y.; Liu, J.; Handa, T.; Nishikubo, R.; Yakumaru, S.; Hashikawa, Y.; Murata, Y.; Saito, T.; Shimakawa, Y.; et al. Solvent-Coordinated Tin Halide Complexes as Purified Precursors for Tin-Based Perovskites. ACS Omega 2017, 2 (10), 7016–7021.

[2] Liu, J.; Ozaki, M.; Yakumaru, S.; Handa, T.; Nishikubo, R.; Kanemitsu, Y.; Saeki, A.; Murata, Y.; Murdey, R.; Wakamiya, A. Lead-Free Solar Cells Based on Tin Halide Perovskite Films with High Coverage and Improved Aggregation. Angew. Chem., Int. Ed. 2018, 57 (40), 13221–13225.

Acknowledgements:

This work was supported by JST-ALCA (JPMJAL1603), COI, ERATO (JPMJER1302), and NEDO.
