An updated approach to quantify ion migration in perovskite solar cells based on capacitance transients
Moritz Schmidt a, Bruno Ehrler a
a AMOLF Institute, Science Park 104, Amsterdam, 1098XG The Netherlands
International Conference on Hybrid and Organic Photovoltaics
Proceedings of International Conference on Hybrid and Organic Photovoltaics (HOPV24)
València, Spain, 2024 May 12th - 15th
Organizer: Bruno Ehrler
Poster, Moritz Schmidt, 199
Publication date: 6th February 2024

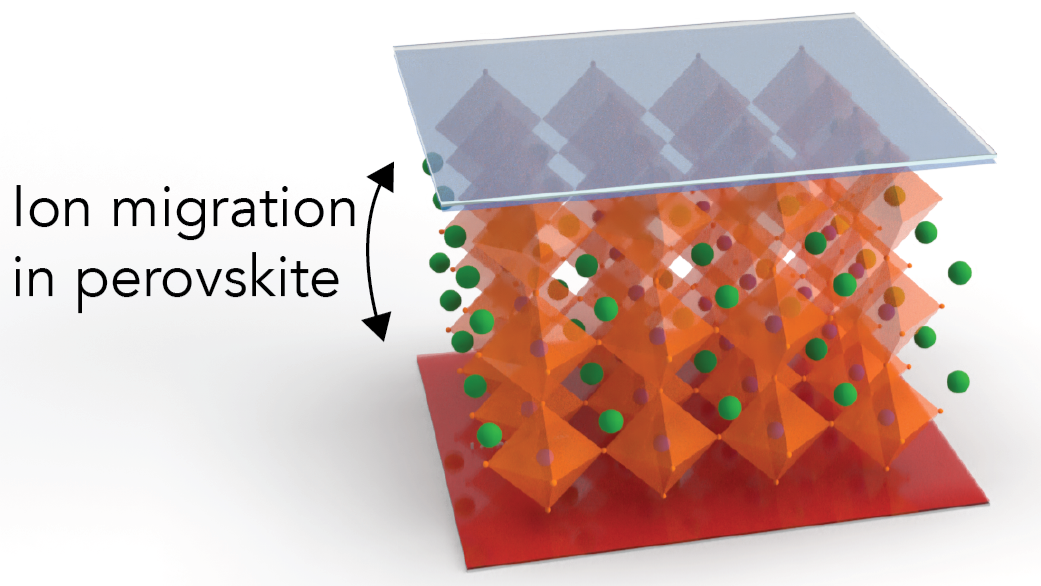

Even though the efficiency of perovskite solar cells has increased significantly in recent years, their long-term stability is still poor, hindering commercial applications. One of the main reasons for this poor stability is mobile ionic carriers which can migrate within the perovskite crystal lattice and often accumulate at the adjacent charge transport layers, reducing the extraction efficiency of electronic carriers. In order to mitigate ion migration, reliable ways of quantifying the density, mobility, and activation energy of mobile ions are necessary. Here, we propose an updated way of characterizing mobile ions based on capacitance transients. In capacitance transients, we generally measure the modulation of the electronic capacitance due to mobile ions drifting through the perovskite. In our updated approach, we first approximate the ionic and electronic carrier distributions and the potential distribution within a perovskite solar cell after applying a voltage pulse. Subsequently, we calculate the capacitance from these distributions using a small-signal approximation, resulting in capacitance transients. By fitting capacitance transients generated from drift-diffusion simulations, we show that an accurate extraction of the density, mobility, and activation energy of mobile ions within the perovskite is possible.
