Exotic features in impedance spectra of perovskite solar cells explained by large carrier densities
Will Clarke a, Petra Cameron b, Giles Richardson a
a Department of Mathematical Sciences, University of Southampton, University of Southampton, Southampton, SO17 1BJ, United Kingdom
b Department of Chemistry, University of Bath, Claverton Down, University of Bath, Bath,UK, BA2 7AY, United Kingdom
International Conference on Hybrid and Organic Photovoltaics
Proceedings of International Conference on Hybrid and Organic Photovoltaics (HOPV23)
London, United Kingdom, 2023 June 12th - 14th
Organizers: Tracey Clarke, James Durrant and Trystan Watson
Poster, Will Clarke, 037
Publication date: 30th March 2023

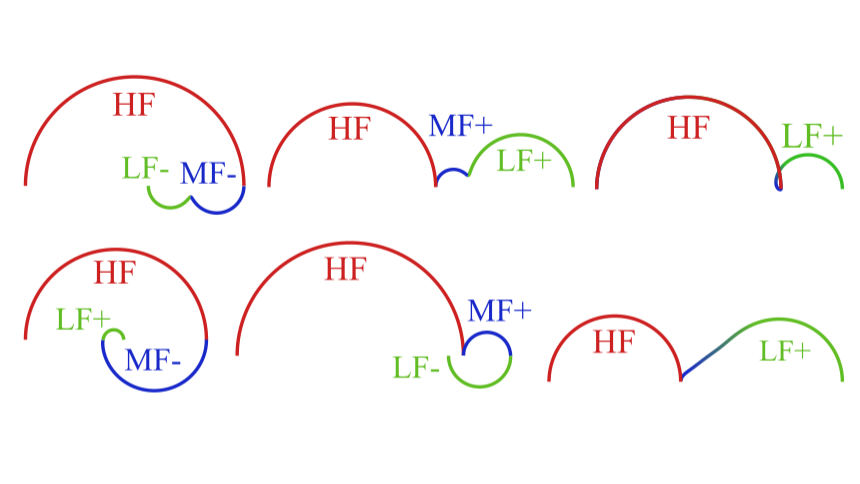

The ‘standard’ impedance spectrum of a perovskite solar cell exhibits two distinct semicircles, the origins of which have been well explained by models of mixed ionic-electronic conduction. Some spectra, however, show additional features, ranging from loops and bulges to an elusive third feature appearing at frequencies between those of the two standard features. The origins of these features have been hotly debated. Possible explanations put forward in the literature range from experimental anomalies to exotic additions to the charge transport model. We show, however, that these exotic features are in fact predicted by the widely accepted model of mixed electronic-ionic conduction in a three-layer planar device without the need for any additions. Furthermore, an asymptotic analysis of the underlying model is used to isolate the relevant material parameters and identify the origin as an ionic response to large carrier densities in the perovskite bulk, caused by an insufficient band offset between the perovskite and one of the charge transport layers. This model is used to recreate and explain a variety of exotic impedance spectra seen in the literature.
