Full plasma and vacuum methodology for manufacturing ITO 1D and 3D nanoelectrodes
Javier Castillo-Seoane a b, Jorge Gil-Rostra a, Gabriel Lozano a, Darío Jumilla a, Kostya Ostrikov c d, Agustín R. González-Elipe a, Ángel Barranco a, Juan Ramón Sánchez-Valencia a b, Ana Borrás a
a Instituto de Ciencia de Materiales de Sevilla (ICMS), Consejo Superior de Investigaciones Científicas (CSIC), Universidad de Sevilla, C/ Américo Vespucio 49, Sevilla, Spain
b Departamento de Física Atómica, Molecular y Nuclear, Universidad de Sevilla, Avda. Reina Mercedes, E-41012, Seville, Spain
c School of Chemistry, Physics and Mechanical Engineering, Queensland University of Technology (QUT), Australia, George Street, 2, Brisbane City, Australia
d CSIRO-QUT Joint Sustainable Processes and Devices Laboratory, Lindfield, Australia
International Conference on Hybrid and Organic Photovoltaics
Proceedings of 13th Conference on Hybrid and Organic Photovoltaics (HOPV21)
Online, Spain, 2021 May 24th - 28th
Organizers: Marina Freitag, Feng Gao and Sam Stranks
Poster, Javier Castillo-Seoane, 181
Publication date: 11th May 2021
ePoster:

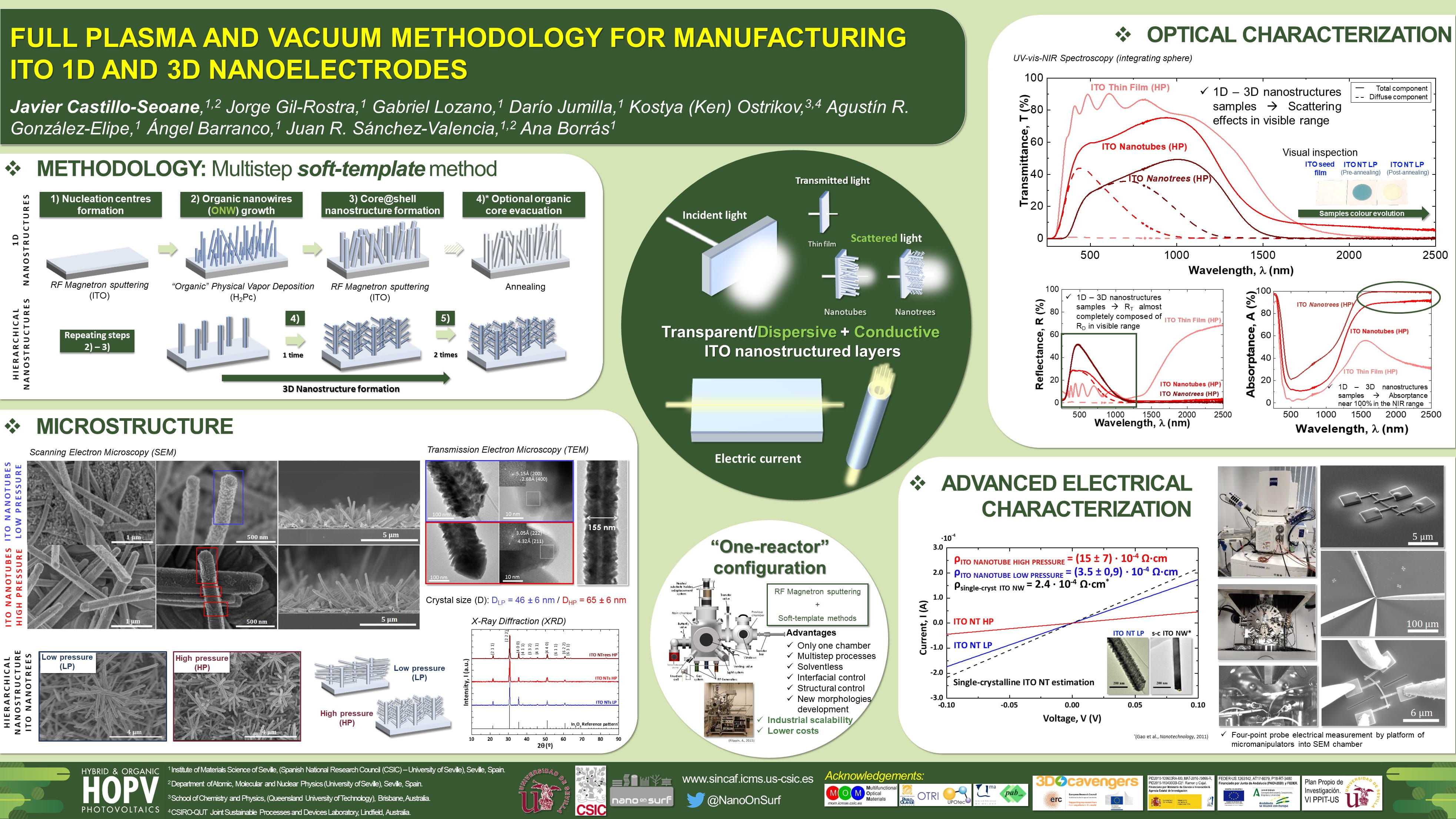

The fabrication of one-dimensional (nanotubes) and three-dimensional (nanotrees) transparent conducting oxides (TCOs) by scalable vacuum and plasma processes implemented in just one chamber is demonstrated in this work. The new method comprises the formation of organic nanowires serving as 1D and 3D soft templates, followed by the deposition of polycrystalline Indium Tin Oxide (ITO) layers by magnetron sputtering, and removal of the template under mild vacuum conditions. The process variables are tuned to control the stoichiometry, morphology, and alignment of the ITO nanotubes and nanotrees. As a result, high quality crystalline, semitransparent and conductive nanostructured layers particularly interesting for optoelectronic, energy harvesting and sensing applications.

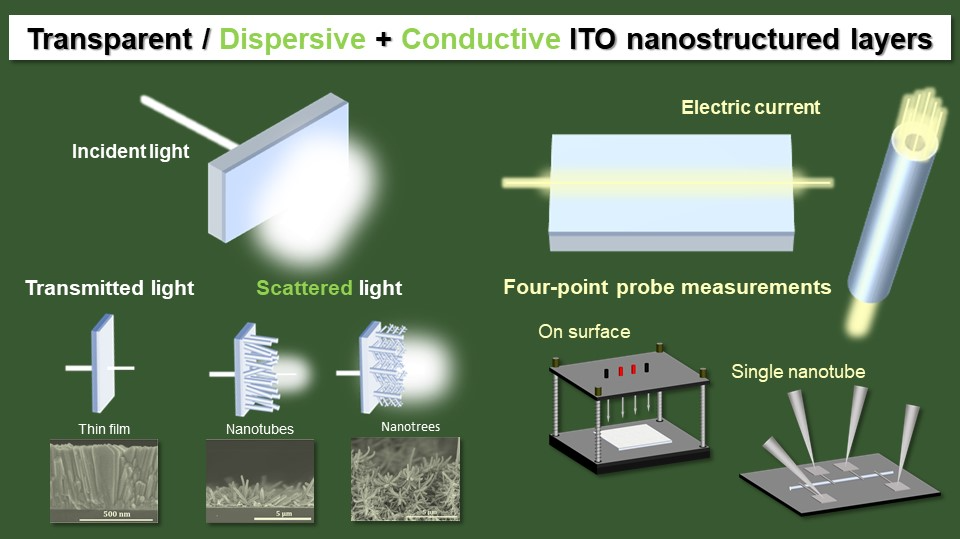

Nanoprobe characterization reveals resistivities of individual nanotubes as low as 3.5 ± 0.9 x 10-4 Ω·cm, a value comparable to single-crystalline counterparts. The assessment of diffuse reflectance and transmittance in the UV-VIS range confirms the viability of the supported ITO nanotubes as random optical media working as strong scattering layers. Further ability to form ITO nanotrees opens the path for practical applications as ultra-broadband absorbers in the NIR. The demonstrated low resistivity and optical properties of these ITO nanostructures open the way for their use in optoelectronics, IR shield, energy harvesting, nanosensors, and photoelectrochemical applications. The process is generic and can be used for other TCOs and wide-bandgap semiconductors.
