The multiple ways of making perovskite/silicon tandem solar cells: Which way to go?

Erkan Aydin^a^,^b, Michele De Bastiani^a^,^b, Anand S. Subbiah^a^,^b, Jiang Liu^a^,^b, Esma Ugur^a^,^b, Randi Azmi^a^,^b, Thomas G. Allen^a^,^b, Atteq ur Rehman^a^,^b, Maxime Babics^a^,^b, Furkan H. Isikgor^a^,^b, Bin Chen^c, Yi Hou^c, Frédéric Laquai^a^,^b, Edward H. Sargent^c, Stefaan De Wolf^a^,^b

^aDivision of Physical Sciences and Engineering, King Abdullah University of Science and Technology (KAUST), SA, Saudi Arabia

^bKing Abdullah University of Science and Technology (KAUST) - Saudi Arabia, 4700 King Abdullah University of Science and Technology (KAUST), Thuwal, Saudi Arabia

^cDepartment of Electrical and Computer Engineering, University of Toronto, Canada, King's College Road, 10, Toronto, Canada

International Conference on Hybrid and Organic Photovoltaics
Proceedings of 13th Conference on Hybrid and Organic Photovoltaics (HOPV21)

Online, Spain, 2021 May 24th - 28th

Organizers: Marina Freitag, Feng Gao and Sam Stranks

Oral, Erkan Aydin, presentation 084
Publication date: 11th May 2021

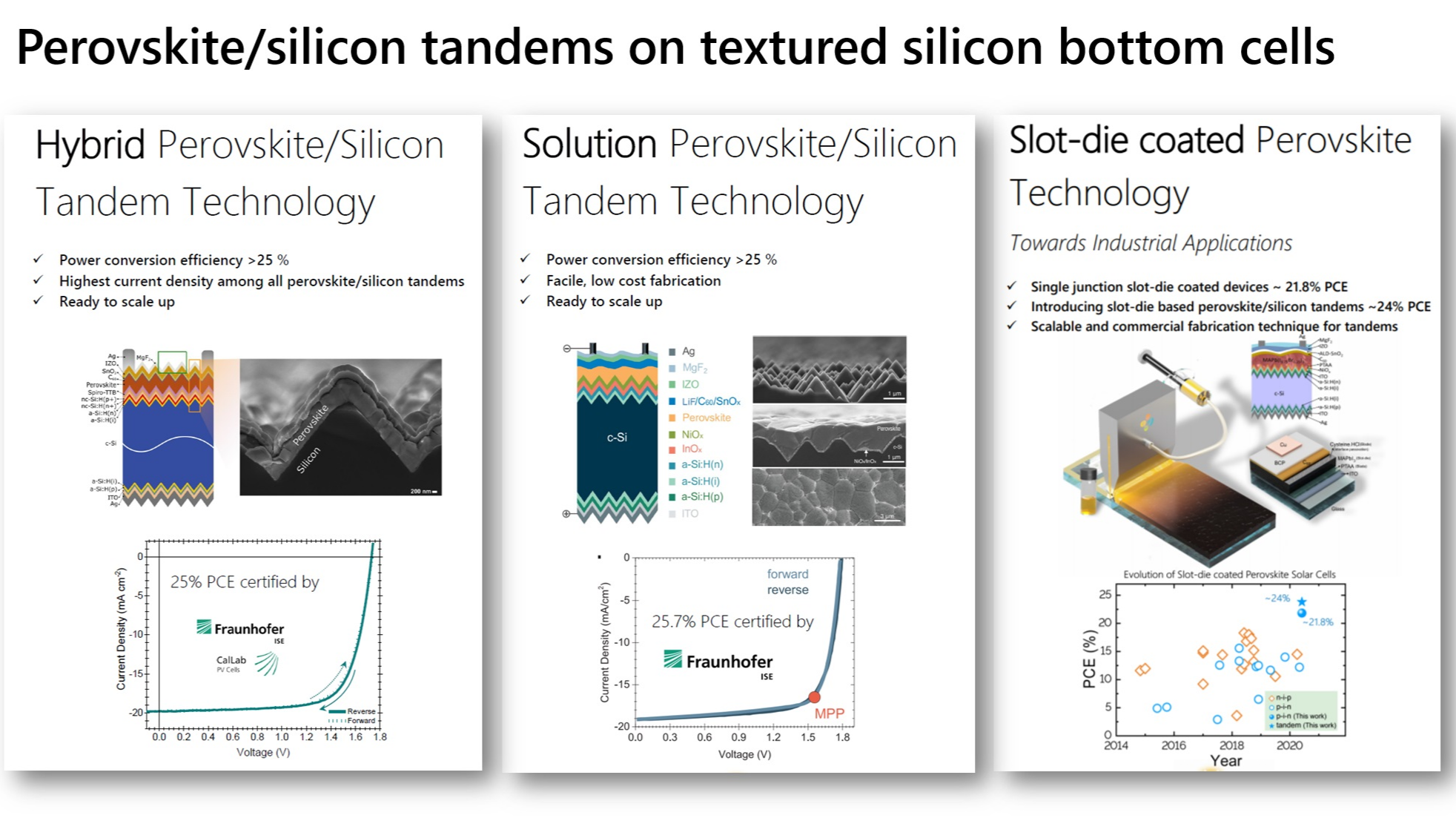

Monolithic perovskite/silicon tandem solar cells are of interest in the photovoltaic community thanks to their potential to combine high power conversion efficiency (PCE) with affordable cost. In the last decade, significant advancements have been reported towards this goal. However, to make perovskite/silicon tandems fully industry-relevant, exclusively scalable fabrication methods and materials need to be employed. Vacuum-based processing techniques can provide a conformal coverage on the pyramidal texture, typical for single-junction silicon solar cells. For such tandems, we reported 25% certified PCE with record current densities of 19.8 mA cm-2. Specifically, we used the vacuum/solution hybrid technique for the perovskite layer, combined with nanocrystalline recombination junctions to keep possible electrical micro shunts localized.[1] Solution-based techniques, specifically one-step perovskite spin-casting, have shown rapid advancements for single-junction perovskite solar cells. However, fully covering perovskite films on micron-scale textured interfaces with this technique requires process sophistication. To achieve end-to-end coverage, we reduced the pyramid size to 1-2 mm and adjusted the perovskite precursor solution concentration. Combining this with 1-butanethiol surface passivation enabled a certified PCE of 25.7% with negligible losses after 400 hours of operation.[2] Next, to translate the solution-based method to large-scale deposition, we adopted slot-die-coated perovskite top cells on textured surfaces since it offers significant advantages in throughput and material utilization. With this approach, we reported 23.7% PCE for the first proof-of-concept device.[3]

Beyond the requirement towards the use of industry-compatible silicon bottom cells (avoiding mirror-polished surfaces), which dictates appropriate perovskite processing techniques, the best choice for the device polarity is still to be settled as well. The initial perovskite/silicon tandems were in the n-i-p configuration but were limited by a high parasitic absorption in the hole-collecting contact stacks at the front (as well as the non-ideal optical design of the bottom cells, using double-side polished wafers). Global tandem research refocused, therefore, onto the p-i-n configuration. However, as a result, perovskite/silicon tandem research no longer stood to benefit from impressive progress made for efficient n-i-p perovskite single-junction solar cells. Nevertheless, adopting these advancements to tandem solar cells may be key towards perovskite/silicon tandems with PCEs well over 30%. Therefore, in this contribution, we will also discuss the existing challenges and our recent advancement on the n-i-p configuration tandems. Overall, this talk will give insight into the future directions to be taken to push the PCE of the perovskite/silicon tandem solar cells beyond 30%.

References:

[1] Aydin, E.; Allen, T. G.; De Bastiani, M.: Xu, L.; Ávila, J., Salvador, M.; Van Kerschaver, E.; De Wolf, S. Interplay between temperature and bandgap energies on the outdoor performance of perovskite/silicon tandem solar cells. Nature Energy 2020, 5, 851-859.

[2] Hou, Y.; Aydin, E.; De Bastiani, M., Xiao, C.; Isikgor, F. H.; Xue, D. J.; Chen, B.; Chen, H.; Bahrami, B.; Chowdhury, A. H.; Johnston, A.; Baek, S-W.; Huang, Z.; Wei, M.; Dong, Y.; Troughton, J.; Jalmood, R.; Mirabelli, A. J.; Allen, T. G.; Van Kerschaver, E.; Saidaminov. M.; Baran, D.; Qiao, Q.; Zhu, K.; De Wolf, S.; Sargent, E. H. Efficient tandem solar cells with solution-processed perovskite on textured crystalline silicon. Science 2020, 367, 1135-1140.

[3] Subbiah, A. S.; Isikgor, F. H.; Howells, C. T.; De Bastiani, M.; Liu, J.; Aydin, E.; Furlan, F'; Allen, T. G.; Xu, F.; Zhumagali, S.; Hoogland, D.; Sargent, E.H.; McCulloch, I.; De Wolf, S. High-Performance Perovskite Single-Junction and Textured Perovskite/Silicon Tandem Solar Cells via Slot-Die-Coating. ACS Energy Letters 2020 5, 9, 3034-3040.

Acknowledgements:

The research reported in this publication was supported by funding from King Abdullah University of Science and Technology (KAUST) under award no. OSR-CARF URF/1/3079-33-01 and award no. IED OSR-2019-4208
