Quantifying Losses of Perovskite Solar Cells with Carbon-based Back-contacts and Outlining a Roadmap for Boosting Their Power Conversion Efficiencies
Dmitry Bogachuk a b, Bowen Yang c, Jiajia Suo c, David Martineau d, Anand Verma d, Stephanie Narbey d, Miguel Anaya e, Kyle Frohna e, Tiarnan Doherty e, David Müller a f, Jan Herterich a f, Salma Zouhair a b g, Lukas Wagner a b, Uli Würfel a f, Anders Hagfeldt c h, Samuel Stranks e i, Andreas Hinsch a
a Fraunhofer Institute for Solar Energy Systems ISE, Germany, Heidenhofstraße, 2, Freiburg im Breisgau, Germany
b University of Freiburg, Department of Sustainable Systems Engineering (INATECH), Freiburg, 79110, Germany.
c Ecole Polytechnique Fédérale de Lausanne EPFL, Laboratory of Photomolecular Science, Institute of Chemical Sciences and Engineering, Station, 6, Lausanne, Switzerland
d Solaronix S.A., Rue de l'Ouriette, 129, Aubonne, Switzerland
e Cavendish Laboratory, Department of Physics, University of Cambridge, UK, JJ Thomson Avenue, Cambridge, United Kingdom
f Freiburg Materials Research Center FMF, Albert-Ludwigs-University Freiburg, DE, Stefan-Meier-Straße, 25, Freiburg im Breisgau, Germany
g Thin films and nanomaterials laboratory, Faculty of Sciences and Techniques (FST), Tangier, Morocco
h Department of Chemistry – Ångström Laboratory, Uppsala University, Sweden
i Department of Chemical Engineering and Biotechnology, University of Cambridge - UK, Cambridge CB2 3RA, UK, Cambridge, United Kingdom
International Conference on Hybrid and Organic Photovoltaics
Proceedings of 13th Conference on Hybrid and Organic Photovoltaics (HOPV21)
Online, Spain, 2021 May 24th - 28th
Organizers: Marina Freitag, Feng Gao and Sam Stranks
Oral, Dmitry Bogachuk, presentation 060
Publication date: 11th May 2021

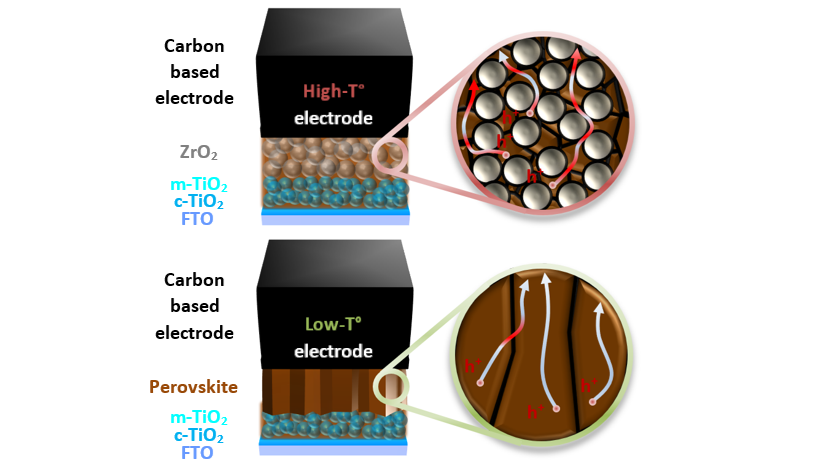

Numerous studies have shown that perovskite solar cells with carbon-based contacts (C-PSCs) provide strong potential for delivering stable and up-scalable perovskite photovoltaic devices. However, their power conversion efficiencies (PCEs) are still lagging behind the conventional solar cells with metallic back-contacts. This necessitates a deeper understanding of the power losses present in C-PSCs in order to find effective strategies to reduce them. In principle, one can distinguish between two types of C-PSCs: (i) where the back-contact is cured at high temperatures (typically > 400°C), thereby allowing perovskite to be integrated into cell stack only after its deposition and (ii) where the back-electrode is deposited at low temperatures (typically < 120°C), which enables layer-by-layer deposition. Both cell structures have significant differences not only in the processing conditions, but also in the dominant losses present in the corresponding PV devices. For the first time, we conducted an objective experimental study to identify the main losses in both types of C-PSCs. We found that the major limitation of the cells with cathodes treated at high-temperatures is the non-radiative recombination happening at the numerous grain-boundaries, which are present in the mesoscopic cell stack of such cell. In contrast, the cells with low-temperature treated contacts can have large perovskite crystals due to more favorable crystallization techniques, allowed via layer-by-layer deposition. By combining experimental results with our numerical simulation we quantitatively demonstrate that the low-number of grain-boundaries reduces non-radiative recombination, thus increasing the quasi-Fermi level splitting of perovskite, prolonging charge carrier lifetime, which results in an impressive Voc > 1.1V in the HTL-free C-PSCs with low-temperature treated contacts. However, we note that in such cells the transport is hindered by the perovskite/carbon contact which significantly reduces the fill factor of such PV devices. Finally, we outline the promising methods of reducing non-radiative recombination and improving charge carrier transport in both types of C-PSCs to fulfill their potential. We further highlight the advantages of the C-PSCs with low-temperature treated electrodes due to higher flexibility of processing conditions, which allows to integrate wide range of charge-transport layer with favorable properties, enhanced crystallization, compatibility with roll-to-roll manufacturing and faster fabrication. [1]

This work has been partially funded within the projects PROPER financed from the German Ministry of Education and Research under funding number 01DR19007 and UNIQUE supported under umbrella of SOLAR-ERA.NET_cofund by ANR, PtJ, MIUR, MINECO-AEI and SWEA, within the EU's HORIZON 2020 Research and Innovation Program (cofund ERA-NET Action No. 691664). D. B. and L. W. acknowledge the scholarship support of the German Federal Environmental Foundation (DBU). S. Z. acknowledges the scholarship support of the German Academic Exchange Service (DAAD). B.Y. and A.H. acknowledge the funding from the European Union’s Horizon 2020 research and innovation program ESPRESSO under the agreement No.: 764047. This work has also been partially funded by Swiss National Science Foundation with Project No. 200020_185041. T.D. acknowledges a National University of Ireland Travelling Studentship. K.F. acknowledges a George and Lilian Schiff Studentship, Winton Studentship, the Engineering and Physical Sciences Research Council (EPSRC) studentship, Cambridge Trust Scholarship, and Robert Gardiner Scholarship. S.S. acknowledges support from the Royal Society and Tata Group (UF150033). M.A. acknowledges funding from the European Union's Horizon 2020 research and innovation programme under the Marie Skłodowska-Curie grant agreement No.841386.
