Stimulated electron-light-matter interactions in the scanning electron microscope
Matthias Liebtrau a, Kelly Mauser a, Marco van der Heijden b, Pieter Kruit b, Albert Polman a
a Center for Nanophotonics, AMOLF, Amsterdam, The Netherlands, Science Park 104, Amsterdam, Netherlands
b Department of Imaging Science and Technology, Faculty of Applied Sciences, Delft University of Technology, Delft, The Netherlands
Proceedings of Electron Beam Spectroscopy for Nanooptics 2021 (EBSN2021)
Online, Spain, 2021 June 14th - 15th
Organizers: Mathieu Kociak and Nahid Talebi
Poster, Matthias Liebtrau, 049
Publication date: 8th June 2021

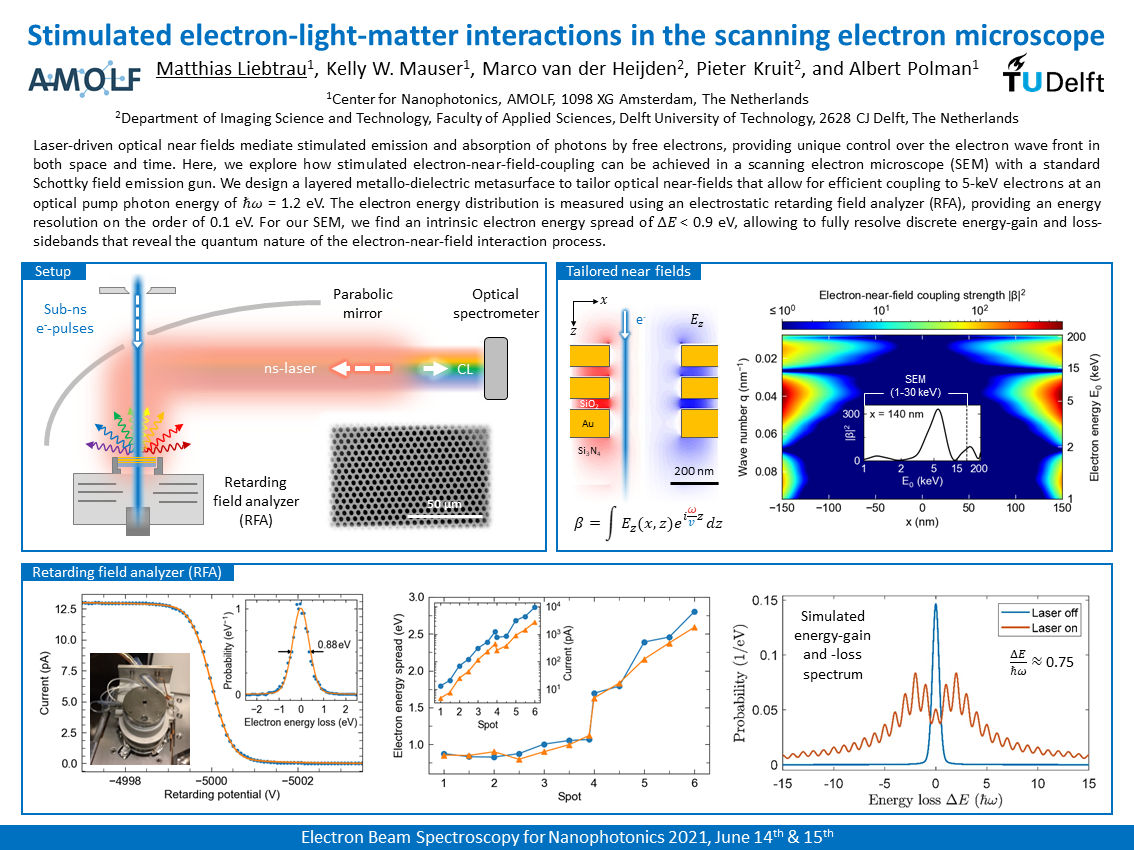

ePoster:

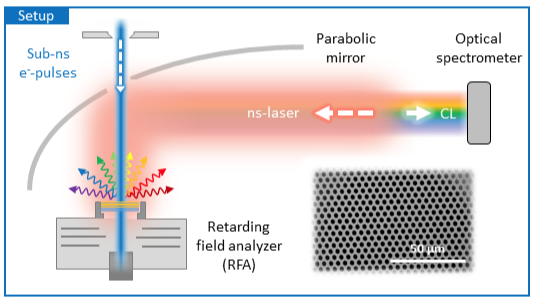

Laser-driven optical near fields mediate stimulated emission and absorption of photons by free electrons, providing unique control over the electron wave front in both space and time. Here, we explore how stimulated electron-near-field-coupling can be achieved in a scanning electron microscope (SEM) with a standard Schottky field emission gun. We design a layered metallo-dielectric metasurface to tailor optical near-fields that allow for efficient coupling to 5-keV electrons at an optical pump photon energy of 1.2 eV. The electron energy distribution is measured using an electrostatic retarding field analyzer (RFA), providing an energy resolution on the order of 0.1 eV. For our SEM, we find an intrinsic electron energy spread < 0.9 eV, allowing to fully resolve discrete energy-gain and loss-sidebands that reveal the quantum nature of the electron-near-field interaction process.
