Continuous-Wave Optical Phase Modulation of Electron Beams Using Chip-based High-Q Microresonators

Armin Feist^a^,^c, Arslan Sajid Raja^b, Jan-Wilke Henke^a^,^c, Guanhao Huang^a^,^c, Germaine Arend^a^,^c, Yujia Yang^b, F. Jasmin Kappert^a^,^c, Rui Ning Wang^b, Marcel Möller^a^,^c, Jiahe Pan^b, Junqiu Liu^b, Ofer Kfir^a^,^c, Tobias J. Kippenberg^b, Claus Ropers^a^,^c

^aUniversity of Göttingen, IV. Physical Institute, 37077 Göttingen, Germany

^bSwiss Federal Institute of Technology Lausanne (EPFL), Institute of Physics, Lausanne, Switzerland

^cMax Planck Institute for Biophysical Chemistry (MPIbpc), 37077 Göttingen, Germany

Proceedings of Electron Beam Spectroscopy for Nanooptics 2021 (EBSN2021)

Online, Spain, 2021 June 14th - 15th

Organizers: Mathieu Kociak and Nahid Talebi

Oral, Armin Feist, presentation 023
Publication date: 8th June 2021

The optical shaping of free-electron beams enables a broad range of applications, from free-space acceleration [1] and attosecond bunching of electrons [2] to the implementation of laser-driven phase plates [3,4] and beam splitters [5]. Despite recent progress towards phase-matched and high-efficiency coupling [8,9], inelastic electron light scattering (IELS) and electron energy gain spectroscopy (EEGS) [10,11] typically require femtosecond high-intensity laser pulses, precluding broad usage in state-of-the-art continuous-beam electron microscopes.

Here, we show IELS on a CW-pumped Si₃N₄ microresonator with a Q-factor of >10⁵, demonstrating μeV-EEGS spectroscopy and achieving an unprecedented high coupling to a continuous electron beam.

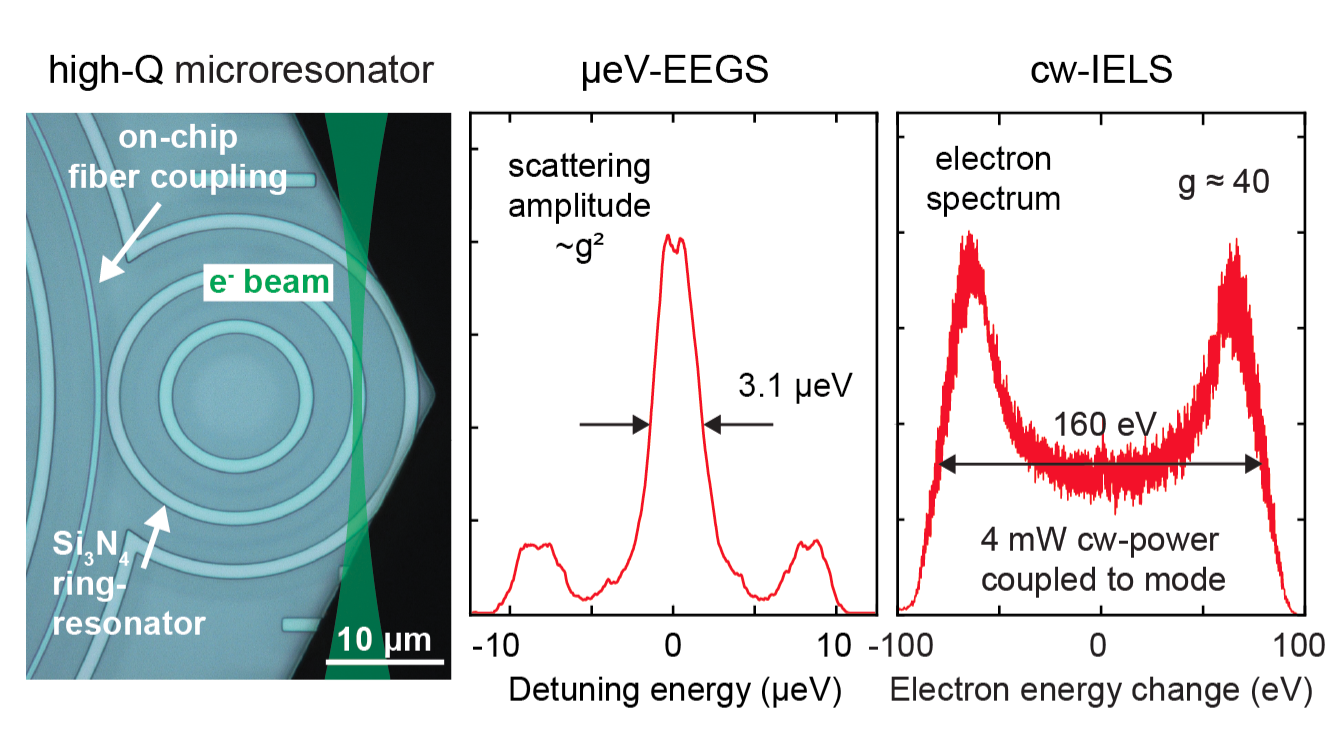

In a custom modified Schottky-field-emission TEM [12], a continuous electron beam interacts with the optical whispering gallery mode confined in a fiber-coupled Si₃N₄ microresonator chip (fabricated in the photonic Damascene process [13], linewidth of ~390 MHz and free spectral range of ~1 THz for the quasi-TM fundamental mode). When the CW laser is tuned to a resonance of the cavity, the initially narrow energy distribution is significantly broadened. At an electron energy of 115 kV, a spectral width of ~160 eV is observed for only 4 mW of optical power coupled to the microresonator. Detuning the laser frequency enables spectral characterization of the resonance, yielding a 3.1-μeV effective linewidth in EEGS. Finally, the interaction strength between the electrons and the evanescent cavity field is mapped by energy-filtered imaging, revealing a rich spatial interaction pattern, resulting from the interplay of phase-matched electron-light interaction and the three-dimensional mode profile.

Combining electron microscopy with integrated photonics opens up new experimental pathways, ranging from versatile light-driven electron phase plates to free-electron cavity quantum optics.

References:

[1] England, R. J.; Noble, R. J.; Bane, K.; Dowell, D. H.; Ng, C.-K.; Spencer, J. E.; Tantawi, S.; Wu, Z.; Byer, R. L.; Peralta, E.; Soong, K.; Chang, C.-M.; Montazeri, B.; Wolf, S. J.; Cowan, B.; Dawson, J.; Gai, W.; Hom-melhoff, P.; Huang, Y.-C.; Jing, C.; McGuinness, C.; Palmer, R. B.; Naranjo, B.; Rosenzweig, J.; Travish, G.; Mizrahi, A.; Schachter, L.; Sears, C.; Werner, G. R.; Yoder, R. B. Dielectric Laser Accelerators. Reviews of Modern Physics 2014, 86 (4), 1337–1389.

[2] Priebe, K. E.; Rathje, C.; Yalunin, S. V.; Hohage, T.; Feist, A.; Schäfer, S.; Ropers, C. Attosecond Electron Pulse Trains and Quantum State Reconstruction in Ultrafast Transmission Electron Microscopy. Nature Photon 2017, 11 (12), 793–797.

[3] Schwartz, O.; Axelrod, J. J.; Campbell, S. L.; Turnbaugh, C.; Glaeser, R. M.; Müller, H. Laser Phase Plate for Transmission Electron Microscopy. Nat Methods 2019, 16 (10), 1016–1020.

[4] Vanacore, G. M.; Berruto, G.; Madan, I.; Pomarico, E.; Biagioni, P.; Lamb, R. J.; McGrouther, D.; Reinhardt, O.; Kaminer, I.; Barwick, B.; Larocque, H.; Grillo, V.; Karimi, E.; García de Abajo, F. J.; Carbone, F. Ultrafast Generation and Control of an Electron Vortex Beam via Chiral Plasmonic near Fields. Nat. Mater. 2019, 18 (6), 573–579.

[5] Feist, A.; Yalunin, S. V.; Schäfer, S.; Ropers, C. High-Purity Free-Electron Momentum States Prepared by Three-Dimensional Optical Phase Modulation. Phys. Rev. Research 2020, 2 (4), 043227

[6] Barwick, B.; Flannigan, D. J.; Zewail, A. H. Photon-Induced near-Field Electron Microscopy. Nature 2009, 462 (7275), 902–906

[7] García de Abajo, F. J. Optical Excitations in Electron Microscopy. Reviews of Modern Physics 2010, 82 (1), 209–275.

[8] Kfir, O.; Lourenço-Martins, H.; Storeck, G.; Sivis, M.; Harvey, T. R.; Kippenberg, T. J.; Feist, A.; Ropers, C. Controlling Free Electrons with Optical Whispering-Gallery Modes. Nature 2020, 582 (7810), 46–49.

[9] Dahan, R.; Nehemia, S.; Shentcis, M.; Reinhardt, O.; Adiv, Y.; Shi, X.; Be’er, O.; Lynch, M. H.; Kurman, Y.; Wang, K.; Kaminer, I. Resonant Phase-Matching between a Light Wave and a Free-Electron Wavefunction. Nat. Phys. 2020, 16 (11), 1123–1131.

[10] Pomarico, E.; Madan, I.; Berruto, G.; Vanacore, G. M.; Wang, K.; Kaminer, I.; García de Abajo, F. J.; Carbone, F. MeV Resolution in Laser-Assisted Energy-Filtered Transmission Electron Microscopy. ACS Photonics 2018, 5 (3), 759–764.

[11] García de Abajo, F. J.; Kociak, M. Electron Energy-Gain Spectroscopy. New Journal of Physics 2008, 10 (7), 073035.

[12] Feist, A.; Bach, N.; Rubiano da Silva, N.; Danz, T.; Möller, M.; Priebe, K. E.; Domröse, T.; Gatzmann, J. G.; Rost, S.; Schauss, J.; Strauch, S.; Bormann, R.; Sivis, M.; Schäfer, S.; Ropers, C. Ultrafast Transmission Elec-tron Microscopy Using a Laser-Driven Field Emitter: Femtosecond Resolution with a High Coherence Electron Beam. Ultramicroscopy 2017, 176, 63–73.

[13] Liu, J.; Raja, A. S.; Karpov, M.; Ghadiani, B.; Pfeiffer, M. H. P.; Du, B.; Engelsen, N. J.; Guo, H.; Zervas, M.; Kippenberg, T. J. Ultralow-Power Chip-Based Soliton Microcombs for Photonic Integration. Optica 2018, 5 (10), 1347.
