Point-of-care Fluidic Immunosensor Chip Based on Near Infrared-absorbing Nanoparticles for Cancer Biomarker Detection
Gabriel Alfranca a, Claudia Olaizola b c, Iñaki Ochoa b c, Rosa Monge c, Carlos Sanchez-Somolinos b, Jesús M. de la Fuente a b
a Instituto de Nanociencia y Materiales de Aragón (INMA), CSIC. Universidad de Zaragoza, Calle de Pedro Cerbuna, 12, Zaragoza, Spain
b Universidad de Zaragoza, Zaragoza, España, Zaragoza, Spain
c Beonchip, Spain, CEMINEM. Campus Rio Ebro. C/ s/n, Calle Mariano Esquillor Gómez, 50018 Zaragoza
Proceedings of Advanced materials and devices for nanomedicine (AMA4MED)
VALÈNCIA, Spain, 2022 May 3rd - 4th
Organizers: Claudia Tortiglione and María Moros
Poster, Gabriel Alfranca, 031
Publication date: 22nd April 2022

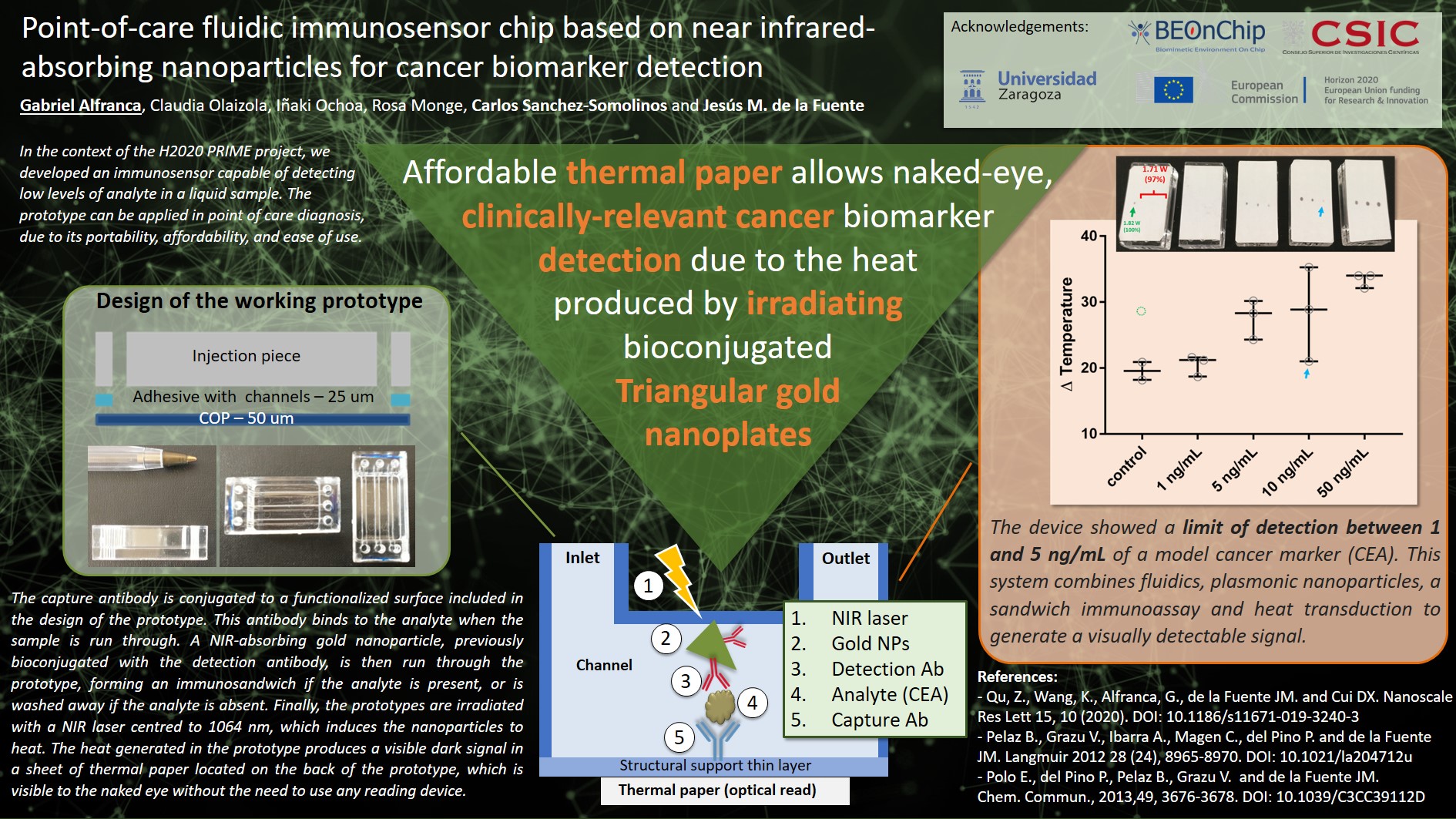

ePoster:

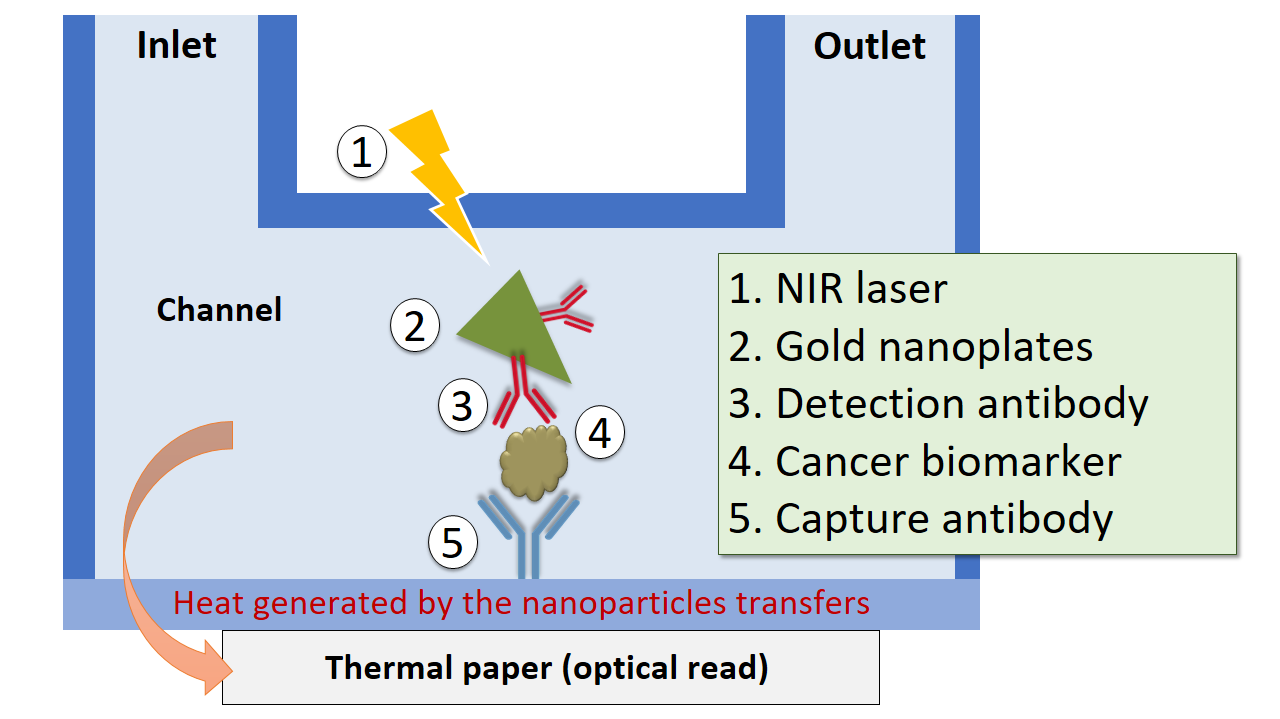

In the context of the H2020 PRIME project, we developed an immunosensor capable of detecting low levels of analyte in a liquid sample. The prototype can be applied in point of care diagnosis, thanks to its portability, affordability, and ease of use. The device presented a limit of detection between 1 and 5 ng/mL of a model cancer marker (CEA). This immunosensor combines microfluidics, plasmonic nanoparticles, a sandwich immunoassay and heat transduction to generate a visually detectable signal. The capture antibody is conjugated to a functionalized surface included in the design of the prototype. This antibody binds to the analyte when the sample is run through. A NIR-absorbing gold nanoparticle, previously bioconjugated with the detection antibody, is then run through the prototype, forming an immunosandwich if the analyte is present, or being washed away if the analyte is absent. Finally, the prototypes are irradiated with a NIR laser centred to 1064 nm, which induces the nanoparticles to heat. The heat generated in the prototype produces a visible dark signal in a sheet of thermal paper located on the back of the prototype, which is visible to the naked eye without the need to use any reading device.
